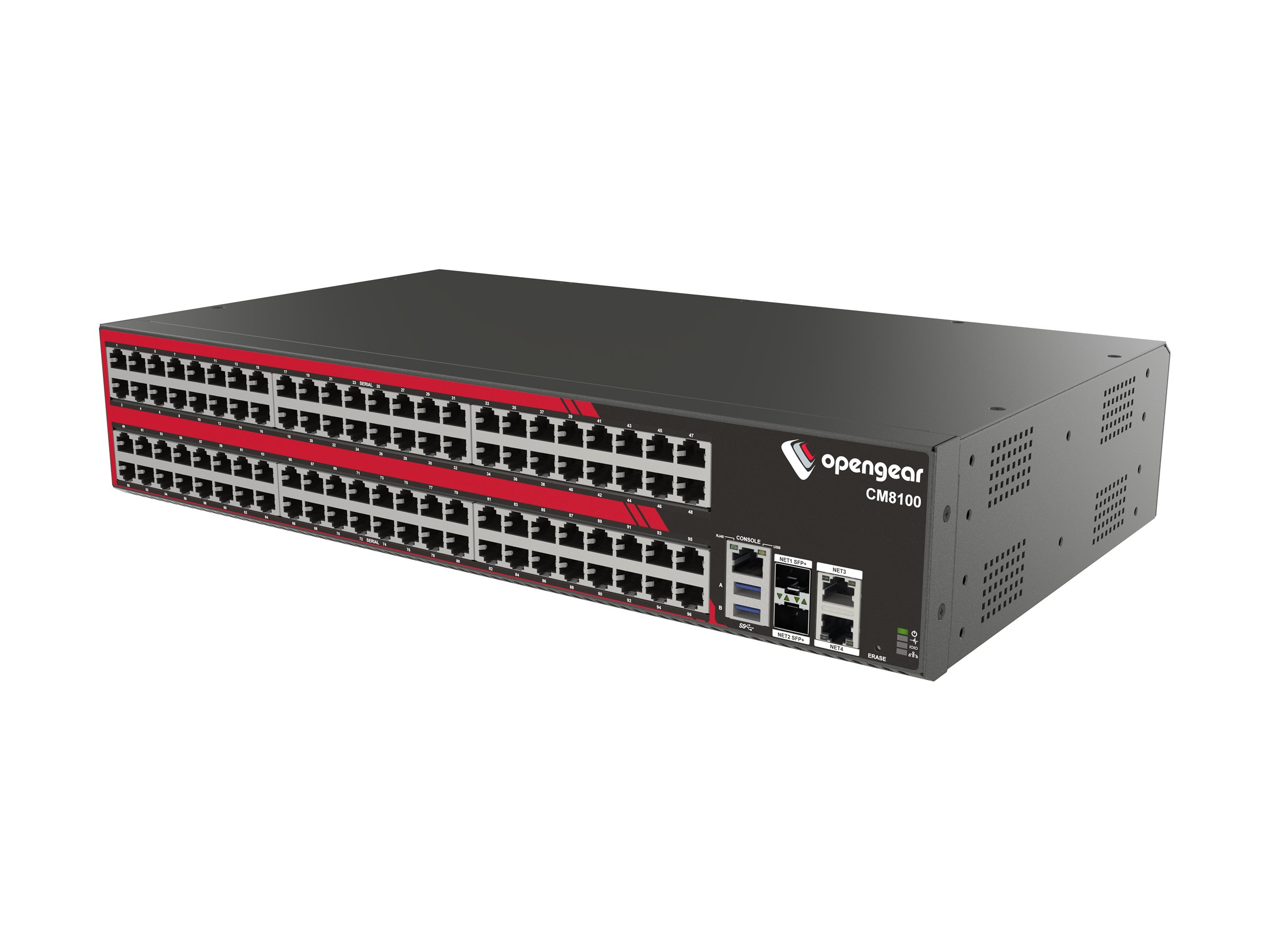

Opengear CM8196-10G - Console server

PVGC€6,555.35
€5,826.00
Stock: 0
Opengear CM8196-10G - Console server
Réf. fabricant:
Copié dans le presse-papier
 Cliquez pour copier
Réf. SHI:
Copié dans le presse-papier
 Cliquez pour copier
Détails rapides
  • 96 ports
  • 1GbE, RS-232
  • 2U
  • rack-mountable
Opengear CM8196-10G - Console server
  • 96 ports
  • 1GbE, RS-232
  • 2U
  • rack-mountable
  Détails supplémentaires
Prix: €5,826.00
PVGC: €6,555.35
Réf. fabricant: CM8196-10G
Réf. SHI: 50387530
Catégorie: Servers
UNSPSC: 43211501
Fabricant: Opengear
Type de produit: Hardware
Informations générales
CategoryServers
DescriptionOpengear CM8196-10G - Console server - 96 ports - 1GbE, RS-232 - 2U - rack-mountable
ManufacturerOpengear
MSRP€6,555.35
UNSPSC43211501
Descriptif principal
Dimensions & Weight / Depth26.5 cm
Dimensions & Weight / Height8.7 cm
Dimensions & Weight / Weight4.5 kg
Dimensions & Weight / Width44 cm
Header / BrandOpengear
Miscellaneous / Product Color
  • Black
  • Red
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • RS-232
Networking / Data Transfer Rate230.4 Kbps
Networking / Form FactorRack-mountable
Networking / Ports Qty96
Networking / TypeConsole server
Packaged Quantity1
Service & Support / Type4-year warranty
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Max Operating Temperature50 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Interfaces
  • 96 x RS-232 - RJ-45
  • 2 x 1000Base-T - RJ-45
  • 2 x 10Gb Ethernet - SFP+
  • 1 x console - RJ-45
  • 2 x USB 3.0 - Type A
General
Built-in DevicesTemperature sensor
Depth26.5 cm
Device TypeConsole server
Height8.7 cm
Height (Rack Units)2U
Weight4.5 kg
Width44 cm
Manufacturer Warranty
Service & Support
  • Limited warranty - 4 years
  • Technical support - 4 years
Miscellaneous
Cables Included
  • 1 x DB-9 to RJ-45 adapter
  • 1 x patch cable - 1.83 m
Compliant StandardsFCC Part 15 B Class A, ICES-003 issue 7, AS/NZS CISPR 32:2015, EN 55035:2017, EN 55032:2017, CISPR 32:2016, VCCI 32, EN 61000-3-2:2019, IEC 61000-3-2:2018, IEC 61000-3-3:2013, EN 61000-4-2:2009, EN 61000-3-3:2013, CNS13438:2006, IEC 61000-4-2:2008, EN 61000-4-3:2006+A1:2008+A2:2010, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, EN 61000-4-4:2012, IEC 61000-4-8:2009, IEC 61000-4-11:2004, EN 61000-4-11:2004, IEC 62368, RoHS
Included AccessoriesRack mount kit, 2 rack mounting ears, nuts, 4 x screws, 2 power cords (C13 to C14)
MTBF150,000 hours
Networking
Authentication MethodTACACS+, Active Directory, RADIUS, LDAP, Secure Shell (SSH)
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, RS-232
Data Transfer Rate230.4 Kbps
FeaturesDual core CPU, Trusted Platform Module 2.0 (TPM 2.0), firewall protection, VPN support, automated failover, Authentication, Authorization and Accounting (AAA), Management Information Base (MIB), Smart Out-of-Band, Docker Support
Form FactorRack-mountable
Network / Transport ProtocolIPv6, IPSec, OpenVPN
Ports Qty96
Remote Management ProtocolIPv6, SSH, HTTP, SNMP
Power
Installed Qty2
Max Supported Qty2
Power Consumption Operational30 Watt
Power DeviceInternal power supply
Power RedundancyYes
Voltage RequiredAC 100-240 V
Processor / Memory / Storage
Flash Memory32 GB
Max Supported Qty1
Processors Installed1 x Marvell 88F6820 1.6 GHz
RAM2 GB DDR4 SDRAM
Ces liens ouvriront des documents stockés sur d'autres sites Web. SHI n'est pas propriétaire de ce contenu.

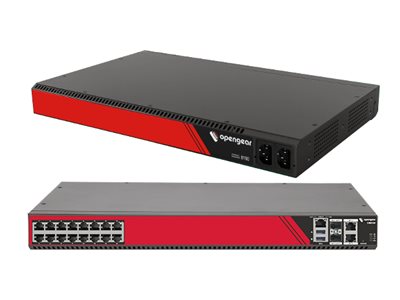

Opengear CM8116-10G - Console server
