Hardware Computer Components Control/Interface Boards
Ajouter à mes favoris
Control/Interface Boards

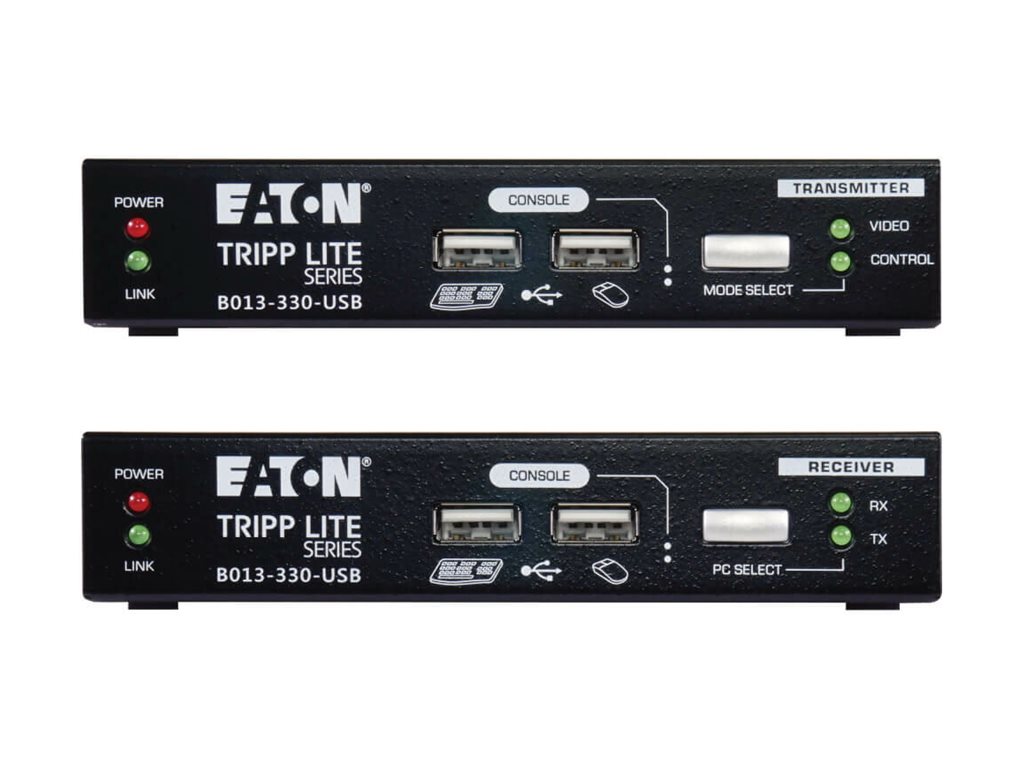

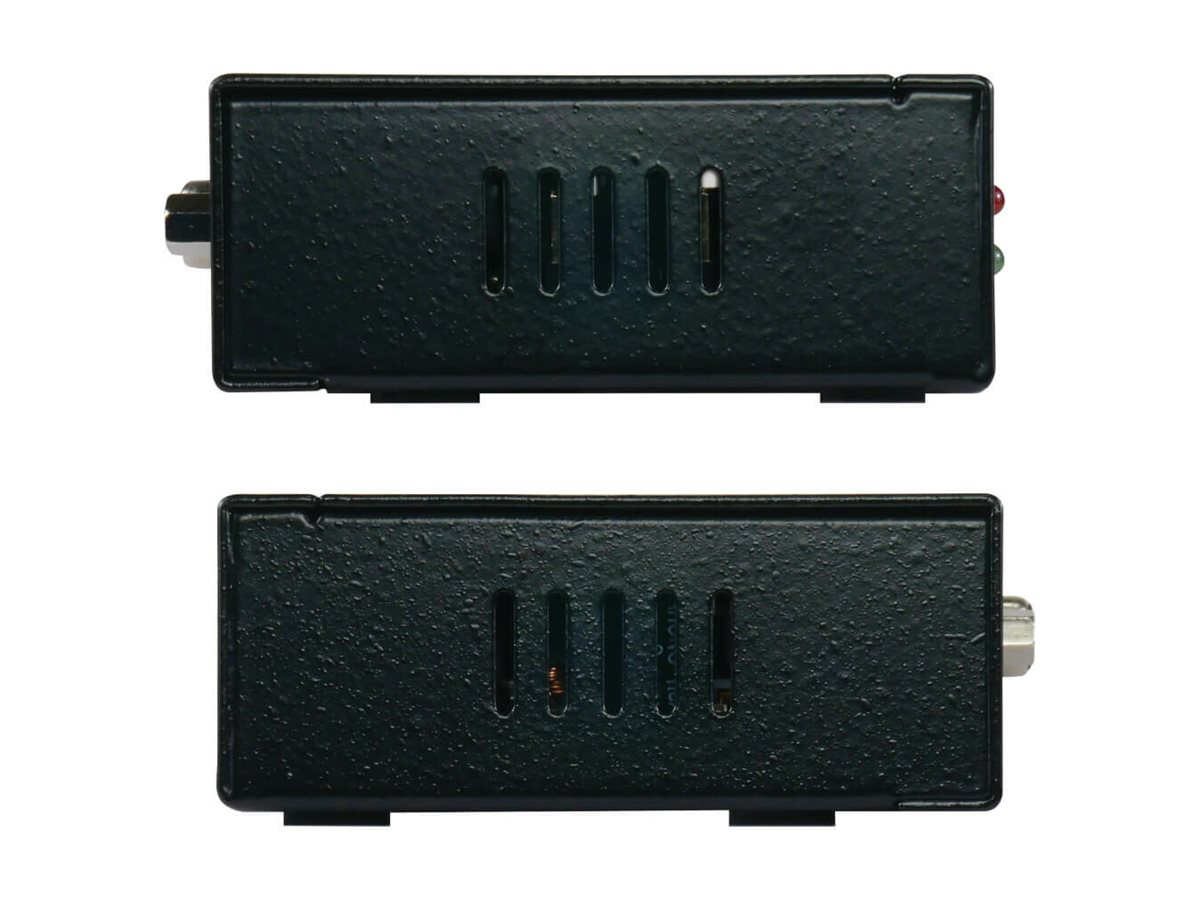

Eaton Tripp Lite Series KVM Extender with VGA and USB Connections, Up to 330 ft.

PVGC€575.83
€339.00
Stock: 0
Eaton Tripp Lite Series KVM Extender with VGA and USB Connections, Up to 330 ft.
Réf. fabricant:
Copié dans le presse-papier
 Cliquez pour copier
Réf. SHI:
Copié dans le presse-papier
 Cliquez pour copier
Détails rapides
  • Extender Kit
  • KVM extender
  • over CAT 5
  • USB
  • up to 100 m
Eaton Tripp Lite Series KVM Extender with VGA and USB Connections, Up to 330 ft.
  • Extender Kit
  • KVM extender
  • over CAT 5
  • USB
  • up to 100 m
  Détails supplémentaires
Prix: €339.00
PVGC: €575.83
Réf. fabricant: B013-330-USB
Réf. SHI: 49704286
Catégorie: Serial port cards
UNSPSC: 43201559
Fabricant: Eaton
Type de produit: Hardware
Informations générales
CategorySerial port cards
DescriptionEaton Tripp Lite Series KVM Extender with VGA and USB Connections, Up to 330 ft. - Extender Kit - KVM extender - over CAT 5 - USB - up to 100 m
ManufacturerEaton
MSRP€575.83
UNSPSC43201559
Descriptif principal
Header / BrandEaton
Networking / Connectivity TechnologyWired
Networking / Form FactorExternal
Networking / TypeKVM extender
Packaged Quantity1
Service & Support / Type3-year warranty
Dimensions & Weight
Dimensions (WxDxH) / Weight Details
  • Transmitter: 13.1 cm x 6.48 cm x 2.59 cm / 290 g
  • Receiver: 13.1 cm x 6.48 cm x 2.59 cm / 290 g
Environmental Parameters
Humidity Range Operating0 - 90% RH (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 2 x USB mouse (transmitter) - Type A female
  • 2 x USB keyboard (receiver) - Type A female
  • 1 x network (transmitter) - RJ-45 female
  • 1 x network (receiver) - RJ-45 female
  • 1 x VGA (transmitter) - DB-15 female
  • 1 x VGA (receiver) - HD-15 female
  • 1 x console (transmitter) - HD-15 female
  • 1 x console (receiver) - DB-15 female
  • 1 x firmware upgrade (transmitter) - USB type B female
  • 1 x firmware upgrade (receiver) - USB type B female
General
ColorBlack
Device TypeKVM extender
Form FactorExternal
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Cables Included
  • 1 x USB-A to USB-B cable
  • 2 x power adapter - 1.8 m
  • 2 x keyboard / mouse / video cable kit
Compliant StandardsEDID compatible, AS/NZS 3112, BS 1363, CEE 7/16, FCC, GS, TUV, NOM, UKCA, UL, WEEE, cUL, CAN/CSA-C22.2 No. 62368-1, EN 55032, EN 55035, IEC 62368-1, cTUVus, UL 62368-1, FCC Part 15 B, REACH, RoHS
Included Accessories8 power plug adapters
Networking
Compliant StandardsUSB 2.0, USB 1.1
Connectivity TechnologyWired
FeaturesMode button, power over cable (PoC), metal housing, hotkey control, zero latency, On-Screen Display
Keyboard / Mouse InterfaceUSB
Max Resolution1920 x 1200 @ 60 Hz
Max Transfer Distance100 m
Status IndicatorsPower, link, video, control LAN
Power
Installed Qty2
Power DeviceExternal power adapter
Voltage RequiredAC 100-240 V (50/60 Hz)
Software / System Requirements
OS RequiredWindows, Apple MacOS
