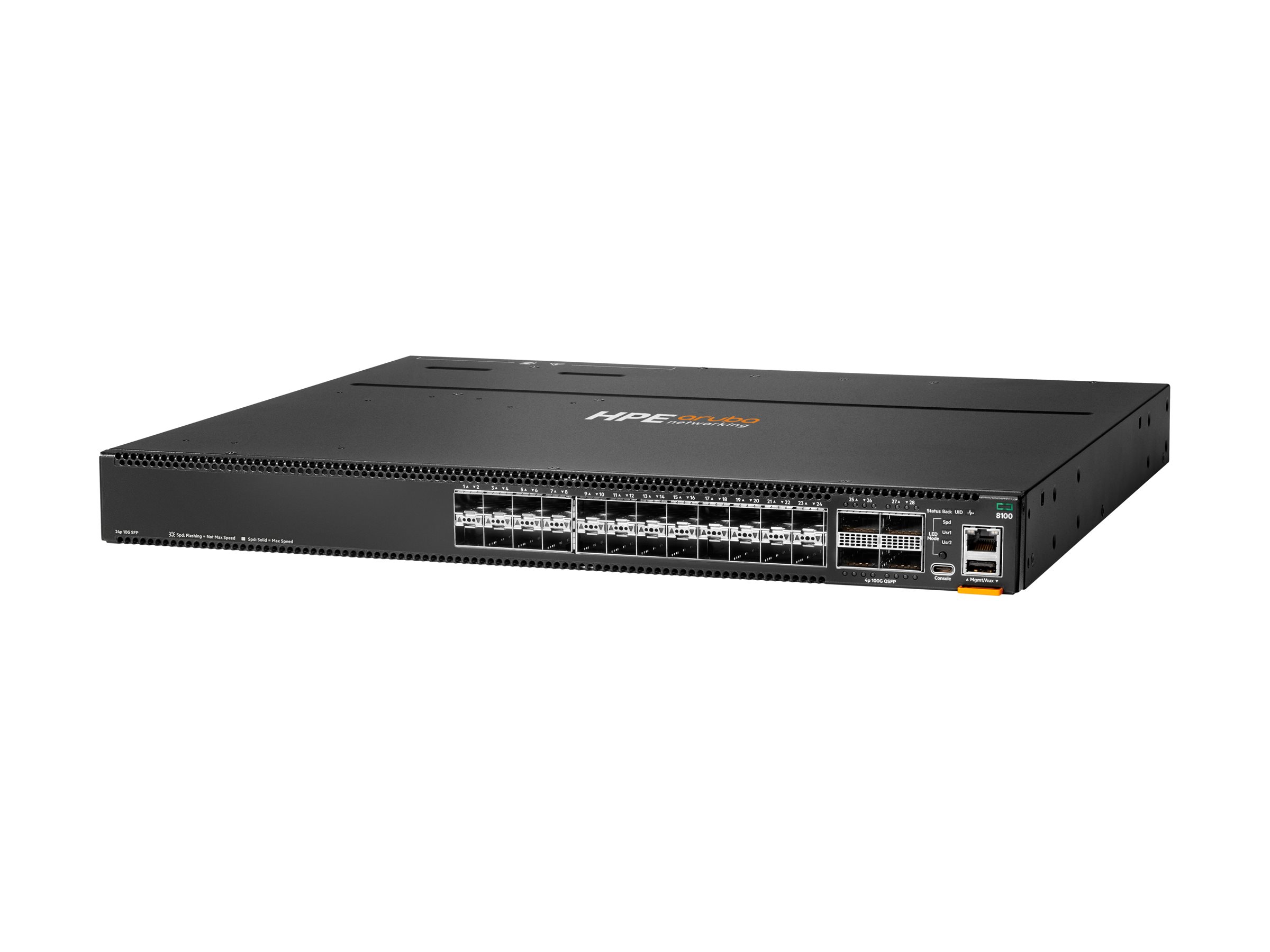

HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 Switch
PVGC€24,684.00
Stock: 0
Réf. fabricant:
Copié dans le presse-papier
Cliquez pour copier
Réf. SHI:
Copié dans le presse-papier
Cliquez pour copier
|
Détails rapides
|
|---|
|
HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 Switch
- Switch
- L3
- managed
- 24 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
- back to front airflow
- rack-mountable
| Détails supplémentaires | |
|---|---|
| Prix: | |
| PVGC: | €24,684.00 |
| Réf. fabricant: | R9W87A |
| Réf. SHI: | 46217514 |
| Catégorie: | Network switches |
| UNSPSC: | 43222612 |
| Fabricant: | Hewlett Packard Enterprise |
| Type de produit: | Hardware |
Network Cables
- 10GBase direct attach cable
- SFP+ (M) to SFP+ (M)
- twinaxial
- passive
- for HPE Aruba 2540 48, 2930F 24, 2930M 24, 6200F 12, 6200M 24, 83XX; CX 10000, 6405 v2, 8360
PVGC €295.00
€160.00
- QSFP28 to QSFP28
- for HPE Aruba 8325-32C, 8325-48Y8C; CX 10000 Empty Chassis, 8360-12C V2, 8360-16Y2C V2
PVGC €482.00
€444.00
- for Edgeline e920; Modular Smart Array 1040, 2040 10; ProLiant DL360p Gen8, e910t 2U; CX 8360
PVGC €267.00
€107.00
Storage Networking (SAN)
- Rack mounting kit (2 post)
- 1U
- for CX 8360-12C, 8360-16Y2C, 8360-24XF2C, 8360-32Y4C, 8360-48XT4C
PVGC €108.00
€87.00
| Informations générales | |
|---|---|
| Category | Network switches |
| Description | HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 Switch - Switch - L3 - managed - 24 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28 - back to front airflow - rack-mountable |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | €24,684.00 |
| UNSPSC | 43222612 |
| Descriptif principal | |
| Dimensions & Weight / Depth | 40.64 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 8.16 kg |
| Dimensions & Weight / Width | 44.25 cm |
| Header / Brand | Aruba |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| System Requirements / OS Required | AOS-CX |
| Dimensions & Weight | |
| Depth | 40.64 cm |
| Height | 4.4 cm |
| Weight | 8.16 kg |
| Width | 44.25 cm |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), TACACS+, RADIUS, Secure Shell v.2 (SSH2) |
| Capacity |
|
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3by, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Features | DCB, QoS, layer 2 switching, RoCE, RoCE v2, Aruba VSX, BFD, ERPS, UDLD, sFlow, NTP, BPDU, port mirroring, RPVST+, Dynamic VXLAN with BGP-EVPN, Address Resolution Protocol, layer 3 routing, OSPF, BGP-4, policy based routing, ECMP, GRE |
| Flash Memory | 32 GB |
| Jumbo Frame Support | 9000 bytes |
| MAC Address Table Size | 147456 entries |
| Performance | Switching capacity: 1.28 Tbps |
| Ports | 24 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28 |
| Processor | 1 x ARM Cortex-A72: 1.8 GHz |
| RAM | 16 GB |
| Remote Management Protocol | SNMP, SNMP 2, SNMP 3, MIB |
| Routing Protocol | MLD, MLDv2, IGMP, IGMPv2, IGMPv3, BGP-4, RIP-2 |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | EN 63000:2018, EMC 2014/30/EU, Directive 2014/35/EU, EN 62368-1:2014 Second Edition, EN 62368-1:2020 3rd Edition, UL62368-1/CAN/CSA C22.2 No.62368-1, IEC 62368-1: 2014, IEC 62368-1:2018, EN 55032:2015, CISPR-32 Class A, FCC CFR 47 Part 15: 2018 Class A, ICES-003 Class A, CNS 13438 Class A, KN32 Class A, VCCI Class A, AS/NZS CISPR 32:2015 Class A, EN 55035:2017, CISPR 35, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC 61000-3-2:2019, EN 61000-3-2:2019, IEC 61000-3-3:2013, EN 61000-3-3:2013, EN 60825-1:2014, IEC 60825-1:2014 Class 1, Laser Class 1 |
| Included Accessories | 3 fan trays, 2-Post Rack Kit |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Stand by | 120 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 550 Watt |
| Voltage Required | AC 100-127/200-240 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | AOS-CX |
