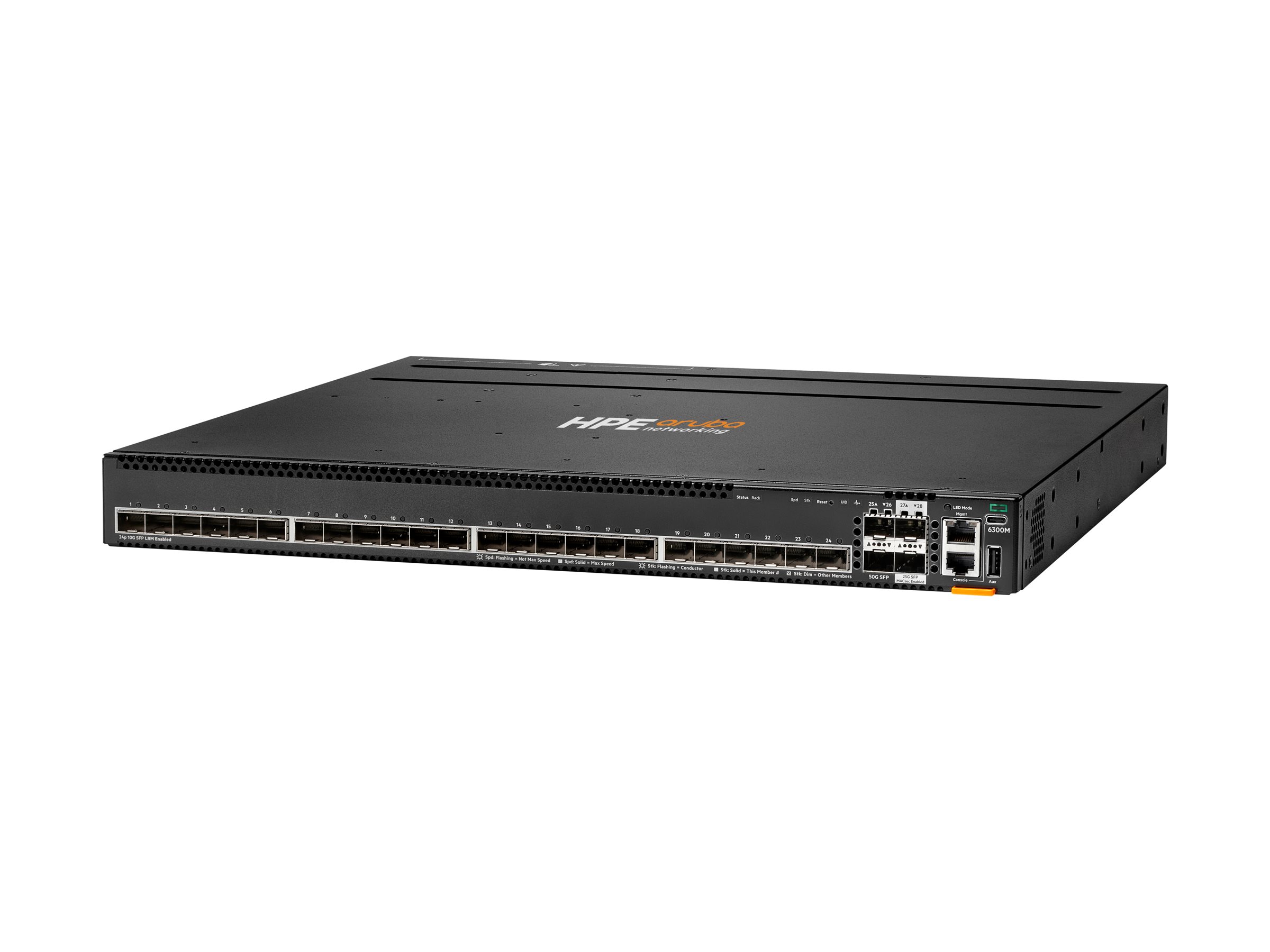

HPE Aruba 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACsec Switch

PVGC€31,132.00
€26,520.00
Stock: 0
HPE Aruba 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACsec Switch
Réf. fabricant:
Copié dans le presse-papier
 Cliquez pour copier
Réf. SHI:
Copié dans le presse-papier
 Cliquez pour copier
Détails rapides
  • Switch
  • L3
  • managed
  • 24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP
  • front and side to back
HPE Aruba 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACsec Switch
  • Switch
  • L3
  • managed
  • 24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP
  • front and side to back
  • rack-mountable
  Détails supplémentaires
Prix: €26,520.00
PVGC: €31,132.00
Réf. fabricant: R8S92A
Réf. SHI: 45332796
Catégorie: Network switches
UNSPSC: 43222612
Fabricant: Hewlett Packard Enterprise
Type de produit: Hardware

Control/Interface Boards

HPE Aruba - SFP56 transceiver module
HPE Aruba - SFP56 transceiver module
  • 50GbE
  • 50GBase-SR
  • LC multi-mode
  • up to 100 m
  • for CX 8360
PVGC €2,360.00 €2,012.00
HPE Aruba - SFP56 transceiver module
HPE Aruba - SFP56 transceiver module
  • 50GbE
  • 50GBase-BX-U
  • LC single-mode
  • up to 10 km
PVGC €4,679.00 €3,960.00
HPE Aruba - SFP56 transceiver module
HPE Aruba - SFP56 transceiver module
  • 25GbE
  • 25GBase-BR
  • LC single-mode
  • up to 10 km
PVGC €3,555.00 €3,009.00

Network Cables

HPE Aruba Direct Attach Copper Cable
HPE Aruba Direct Attach Copper Cable
  • 10GBase direct attach cable
  • SFP+ (M) to SFP+ (M)
  • twinaxial
  • passive
  • for HPE Aruba 2540 48, 2930F 24, 2930M 24, 6200F 12, 6200M 24, 83XX; CX 10000, 6405 v2, 8360
PVGC €295.00 €160.00
HPE Aruba - 1000Base direct attach cable
HPE Aruba - 1000Base direct attach cable
  • QSFP28 to QSFP28
  • for HPE Aruba 8325-32C, 8325-48Y8C; CX 10000 Empty Chassis, 8360-12C V2, 8360-16Y2C V2
PVGC €482.00 €444.00
HPE Aruba - 50GBase direct attach cable
HPE Aruba - 50GBase direct attach cable
  • SFP56 to SFP56
  • for HPE Aruba 6300, 6405, 6405 48, 6405 96, 6410; CX 8360
PVGC €383.00 €353.00
Informations générales
CategoryNetwork switches
DescriptionHPE Aruba 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACsec Switch - Switch - L3 - managed - 24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP - front and side to back - rack-mountable
ManufacturerHewlett Packard Enterprise
MSRP€31,132.00
UNSPSC43222612
Descriptif principal
Dimensions & Weight / Depth38.5 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight5.47 kg
Dimensions & Weight / Width44.2 cm
Header / BrandAruba
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty24
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth38.5 cm
Height4.4 cm
Weight5.47 kg
Width44.2 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 95% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 24 x Gigabit / 10Gbit LAN SFP+ with MACsec
  • 2 x 1Gbit/10Gbit/25Gbit/50Gbit SFP
  • 1 x USB-C console
  • 1 x management
  • 1 x USB Type A
  • 1 x console
  • 2 x 10/25Gbit LAN SFP with MACsec
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+
Capacity
  • Switched virtual interfaces (SVIs): 1024
  • IPv4 host table capacity: 49152
  • IPv6 host table capacity: 49152
  • IPv4 routes (Unicast): 61000
  • IPv6 routes (Unicast): 61000
  • IPv4 routes (Multicast): 8192
  • IPv6 routes (Multicast): 8192
  • IGMP groups: 8192
  • MLD groups: 8192
  • IPv4 ACL entries (ingress): 20480
  • IPv6 ACL entries (ingress): 5120
  • MAC ACL entries (ingress): 20480
  • IPv4 ACL entries (egress): 8192
  • IPv6 ACL entries (egress): 2048
  • MAC ACL entries (egress): 8192
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX
Device TypeSwitch - 24 ports - L3 - managed - stackable
Enclosure TypeFront and side to back rack-mountable 1U
FeaturesDHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB, LRM optics support, 16MB packet buffer, IPv6 support, RSTP support, STP support, fan tray
Flash Memory32 GB
Jumbo Frame Support9198 bytes
MAC Address Table Size32768 entries
Performance
  • Switching capacity: 880 Gbps
  • Throughput: 660 Gbps
  • Latency (1 Gbps): 4.24 µs
  • Latency (10 Gbps): 1.5 µs
  • Latency (25 Gbps): 2.91 µs
  • Latency (50 Gbps): 3.49 µs
  • Stacking bandwidth: 200 Gbps
Ports24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP
Processor1 x ARM: 1.8 GHz
RAM8 GB DDR4 SDRAM
Remote Management ProtocolRMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, SFTP, SNMP
Routing ProtocolEGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD), RSTP, STP, BGP, MSTP, GRE, policy-based routing (PBR), OSPF, PIM-SM
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsFCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, FCC Part 15, ICES-003 Class A, RoHS, WEEE, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 50581:2012, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, UL/CSA60950-1 (2nd Edition), CISPR 35, EN 55024:2010 Class A, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Included AccessoriesFan tray
Rack Mounting KitIncluded
Power
Max Supported Qty2
Power DeviceInternal power supply - hot-plug
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Voltage Required(50/60 Hz)
