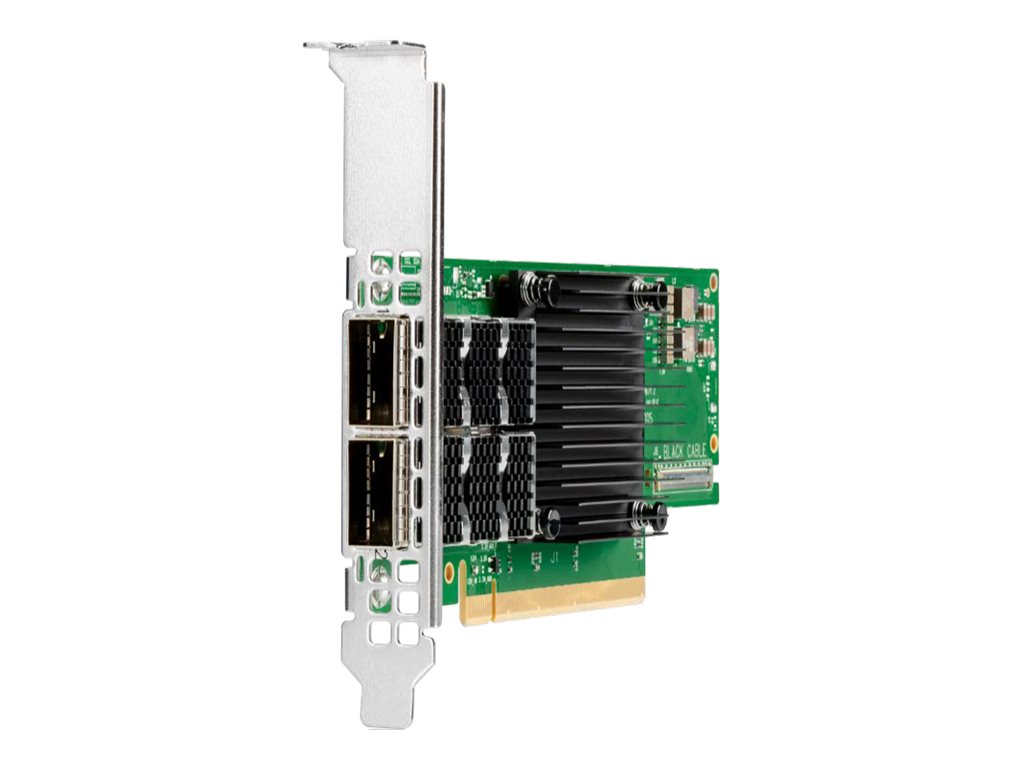

HPE InfiniBand HDR100 MCX653106A-ECAT
Stock: 0
Réf. fabricant:
Copié dans le presse-papier
Cliquez pour copier
Réf. SHI:
Copié dans le presse-papier
Cliquez pour copier
|
Détails rapides
|
|---|
|
HPE InfiniBand HDR100 MCX653106A-ECAT
- Network adapter
- PCIe 4.0 x16 low profile
- 100Gb Ethernet / 100Gb Infiniband QSFP28 x 2
- for ProLiant DL325 Gen10, DL345 Gen10, DL365 Gen10, DL380 Gen10
| Détails supplémentaires | |
|---|---|
| Prix: | |
| Réf. fabricant: | P23666-B21 |
| Réf. SHI: | 39332499 |
| Catégorie: | Network interface cards |
| UNSPSC: | 43201404 |
| Fabricant: | Hewlett Packard Enterprise |
| Type de produit: | Hardware |
| Informations générales | |
|---|---|
| Category | Network interface cards |
| Description | HPE InfiniBand HDR100 MCX653106A-ECAT - Network adapter - PCIe 4.0 x16 low profile - 100Gb Ethernet / 100Gb Infiniband QSFP28 x 2 - for ProLiant DL325 Gen10, DL345 Gen10, DL365 Gen10, DL380 Gen10 |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | €1,193.00 |
| UNSPSC | 43201404 |
| Descriptif principal | |
| Header / Brand | HPE |
| Miscellaneous / Product Color |
|
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 100 Gbps |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x 100Gb Ethernet / 100Gb Infiniband - QSFP28 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0 |
| Miscellaneous | |
| Compliant Standards | RoHS, FCC CFR47 Part 15 A, ICES-003 Class A, EN 55022 Class A, CISPR 22 Class A, AS/NZS CISPR 22, RCM Class A, VCCI Class A, EN55024, KC, UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, IEC 60068-2-64, IEC 60068-2-29, IEC 60068-2-32 |
| Networking | |
| Compliant Standards | IBTA 1.3, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ap, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1p, IEEE 1588v2, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg |
| Connectivity Technology | Wired |
| Data Link Protocol | 100 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet, 100 Gigabit InfiniBand |
| Data Transfer Rate | 100 Gbps |
| Features | VPI, TPH, AER, MSI-X, MSI, InfiniBand DDR Link support, InfiniBand EDR Link support, InfiniBand FDR Link support, InfiniBand QDR Link support, InfiniBand SDR Link support, congestion control, VLAN support, auto-negotiation, XRC transport, DCT, UMR, ODP, RoCE, LRO, LSO, TSS, HDS, PXE support, UEFI support, QoS, Jumbo Frames support, RSS, MPLS support, InfiniBand HDR100 Link support |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Ports | 100Gb Ethernet / 100Gb Infiniband QSFP28 x 2 |
| Power | |
| Power Consumption Operational | 17.7 Watt |
| Processor / Memory | |
| Processor | 1 x Mellanox ConnectX-6 |
| Software / System Requirements | |
| OS Required | CentOS, FreeBSD, Microsoft Windows, Red Hat Enterprise Linux |
