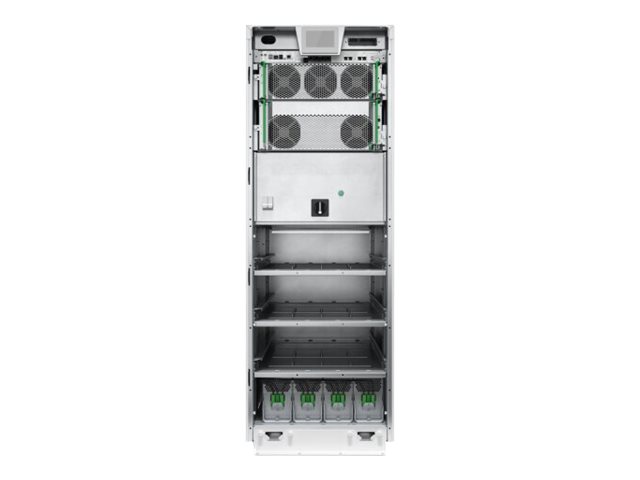

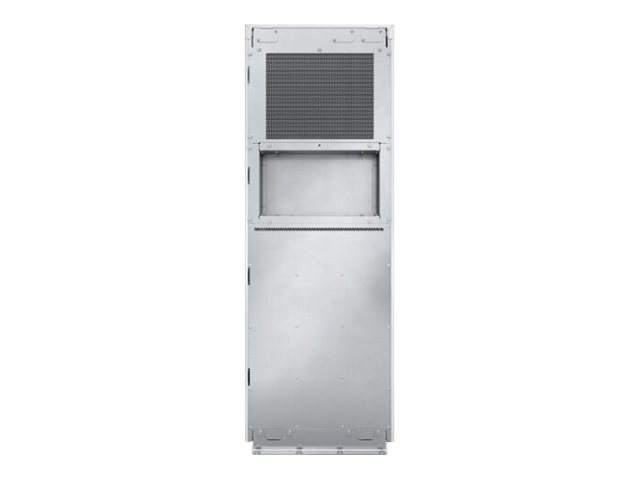

Schneider Electric Galaxy VS GVSUPS50KB4HS
PVGC€21,200.00
Stock: 0
Réf. fabricant:
Copié dans le presse-papier
Cliquez pour copier
Réf. SHI:
Copié dans le presse-papier
Cliquez pour copier
|
Détails rapides
|
|---|
|
Schneider Electric Galaxy VS GVSUPS50KB4HS
- UPS
- AC 380/400/415 V
- 50 kW
- 50000 VA
- 3-phase
- 9 Ah
- Ethernet
- white, RAL 9003
- with Start-Up Service 5X8
| Détails supplémentaires | |
|---|---|
| Prix: | |
| PVGC: | €21,200.00 |
| Réf. fabricant: | GVSUPS50KB4HS |
| Réf. SHI: | 39299974 |
| Catégorie: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Fabricant: | APC by Schneider Electric |
| Type de produit: | Hardware |
| Informations générales | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Schneider Electric Galaxy VS GVSUPS50KB4HS - UPS - AC 380/400/415 V - 50 kW - 50000 VA - 3-phase - 9 Ah - Ethernet - white, RAL 9003 - with Start-Up Service 5X8 |
| Manufacturer | APC by Schneider Electric |
| MSRP | €21,200.00 |
| UNSPSC | 39121011 |
| Descriptif principal | |
| Dimensions & Weight / Depth | 84.7 cm |
| Dimensions & Weight / Height | 148.5 cm |
| Dimensions & Weight / Weight | 460 kg |
| Dimensions & Weight / Width | 52.1 cm |
| General / Subcategory | UPS |
| Header / Brand | Schneider |
| Miscellaneous / Product Color | White |
| Networking / Remote Management Interface | Ethernet |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Power Capacity (VA) | 50000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 380/400/415 V |
| Product Type | UPS |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Capacity | 9 Ah |
| Type | Expandable |
| Voltage Provided | 480 V |
| Dimensions & Weight | |
| Depth | 84.7 cm |
| Height | 148.5 cm |
| Weight | 460 kg |
| Width | 52.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 99 cm |
| Shipping Height | 168 cm |
| Shipping Weight | 490 kg |
| Shipping Width | 64 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 57 dB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (free) x SmartSlot |
| Interfaces | Management (Ethernet) - RJ-45 |
| General | |
| Bundled Services | Start-Up Service 5X8 |
| Color | White, RAL 9003 |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site |
| Miscellaneous | |
| Compliant Standards | IP20, CSA C22.2 No. 107.3, EN 62040-1, IEC 62040-1, EN 62040-2, IEC 62040-2, EN 62040-3, IEC 62040-3, IEC 60721-4-2, UL 1778 5th edition |
| Features | Built-in static bypass, audible alarm, Parallel Capability, 4.3" touch screen LCD display |
| Included Accessories | Dust filter |
| Networking | |
| Remote Management Interface | Ethernet |
| Power Device | |
| Efficiency | 99% Eco mode, 99% ECOnversion mode, 97% double conversion mode |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | Hardwire 4-wire (3PH + G), hardwire 5-wire (3PH + N + G) |
| Input Voltage | AC 380/400/415 V |
| Input Voltage Margin | ± 15% |
| Input Voltage Range | AC 340 - 460 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 380/400/415 V ± 1% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 50 kW / 50000 VA |
| Power Output Connectors Details | Hardwire 5-wire (3PH + N + G) |
| UPS Technology | On-line |
