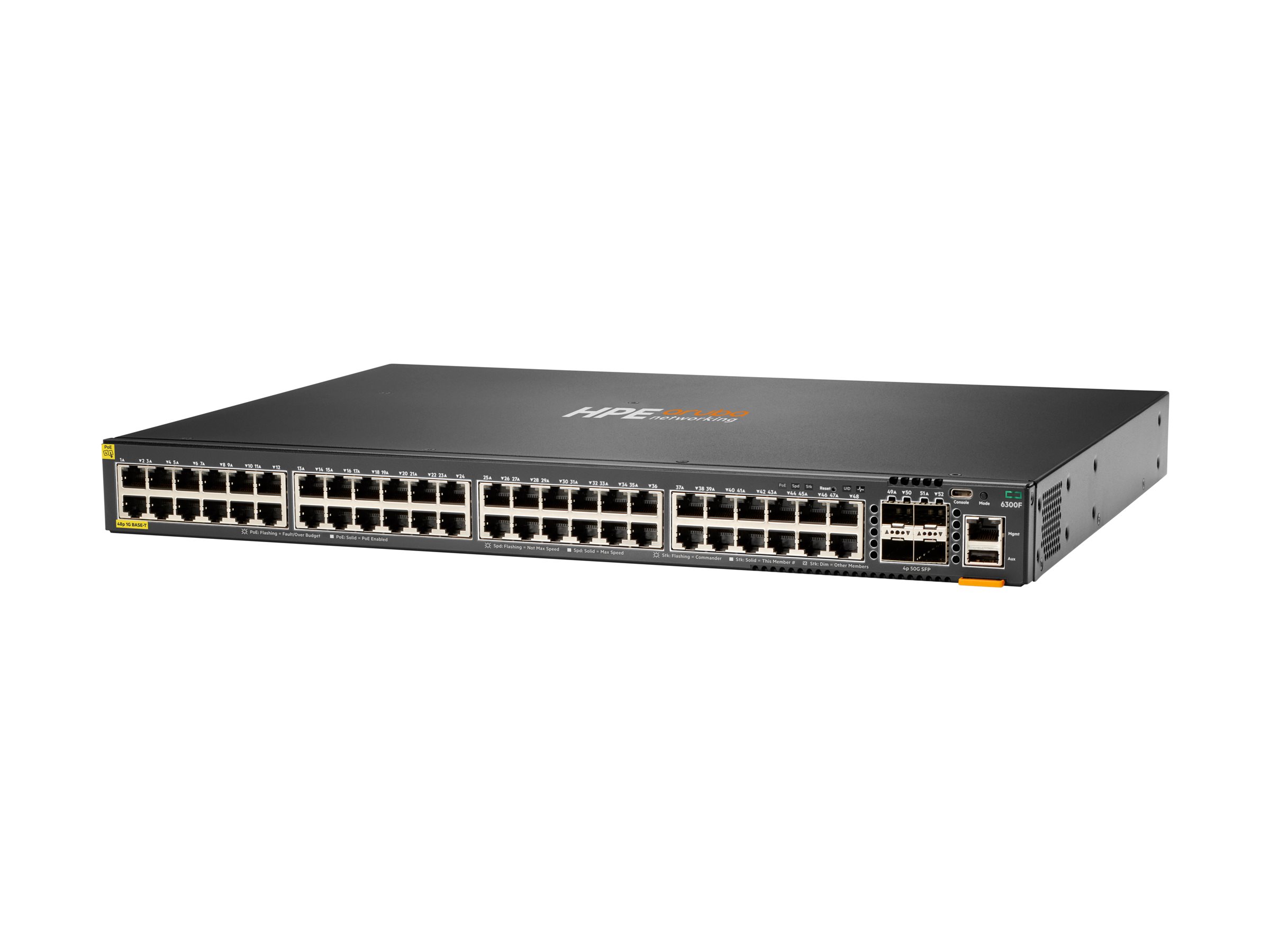

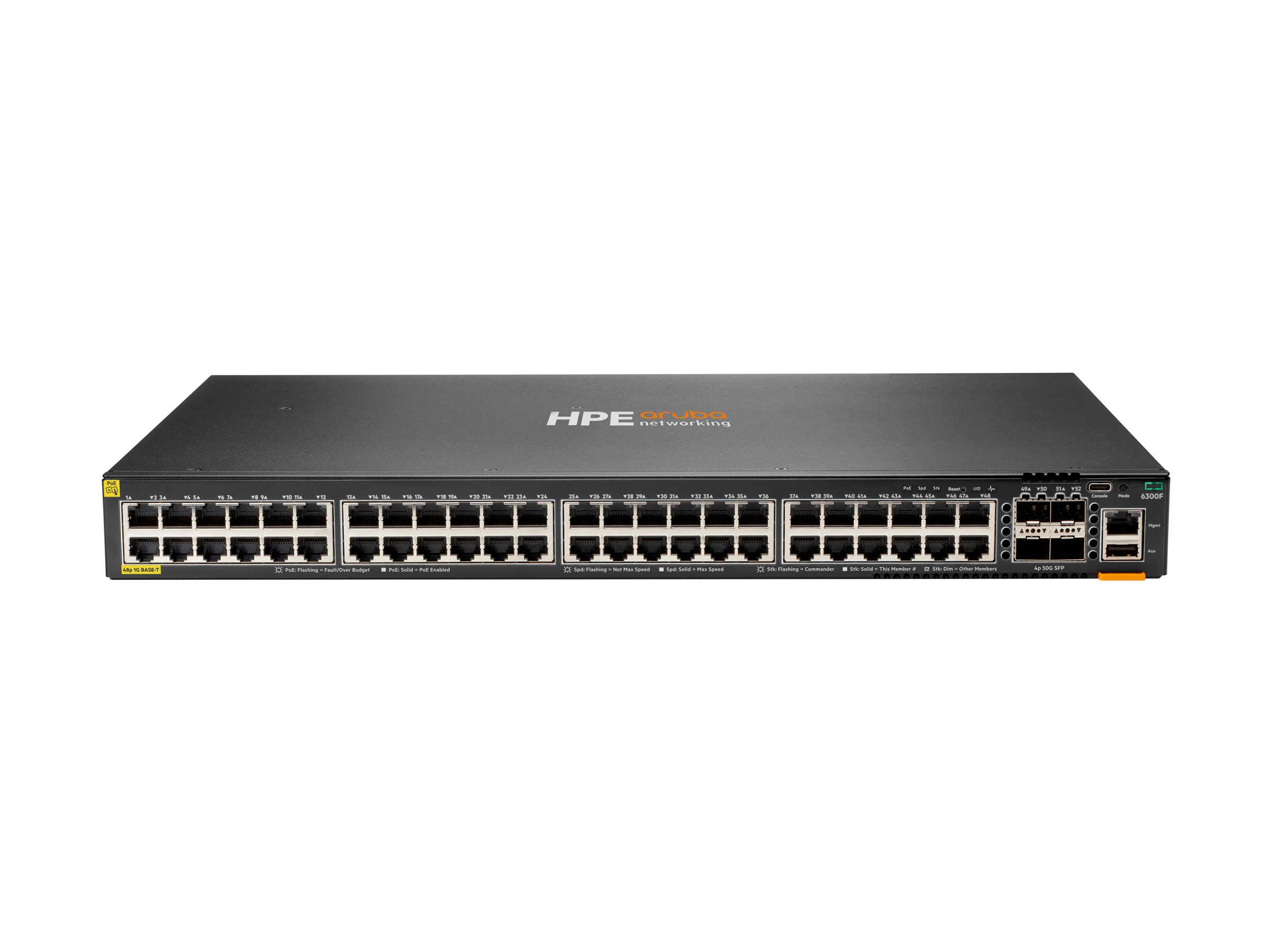

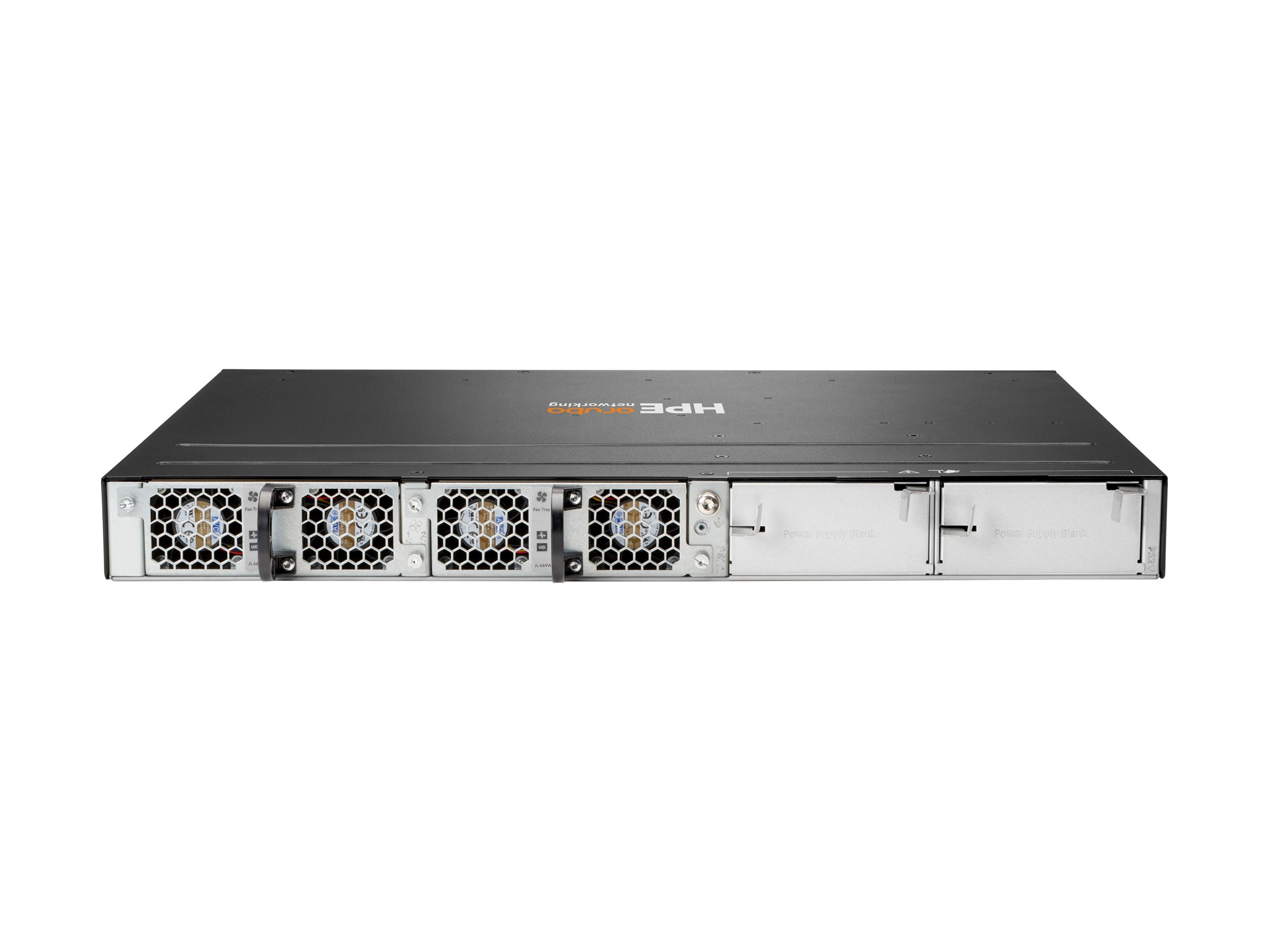

HPE Aruba 6300F - Switch

PVGC€15,254.00
€12,990.00
Stock: 0
HPE Aruba 6300F - Switch
Réf. fabricant:
Copié dans le presse-papier
 Cliquez pour copier
Réf. SHI:
Copié dans le presse-papier
 Cliquez pour copier
Détails rapides
  • L3
  • managed
  • 48 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56
  • front to back airflow
  • rack-mountable
HPE Aruba 6300F - Switch
  • L3
  • managed
  • 48 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56
  • front to back airflow
  • rack-mountable
  • PoE+
  • TAA Compliant
  Détails supplémentaires
Prix: €12,990.00
PVGC: €15,254.00
Réf. fabricant: JL665A
Réf. SHI: 38697764
Catégorie: Network switches
UNSPSC: 43222612
Fabricant: Hewlett Packard Enterprise
Type de produit: Hardware

Control/Interface Boards

HPE Aruba - SFP56 transceiver module
HPE Aruba - SFP56 transceiver module
  • 50GbE
  • 50GBase-SR
  • LC multi-mode
  • up to 100 m
  • for CX 8360
PVGC €2,360.00 €2,012.00
HPE Aruba - SFP56 transceiver module
HPE Aruba - SFP56 transceiver module
  • 25GbE
  • 25GBase-ER
  • LC single-mode
  • up to 40 km
PVGC €11,237.00 €9,509.00

Network Cables

HPE Aruba Direct Attach Copper Cable
HPE Aruba Direct Attach Copper Cable
  • 10GBase direct attach cable
  • SFP+ (M) to SFP+ (M)
  • twinaxial
  • passive
  • for HPE Aruba 2540 48, 2930F 24, 2930M 24, 6200F 12, 6200M 24, 83XX; CX 10000, 6405 v2, 8360
PVGC €295.00 €160.00
HPE Aruba - 1000Base direct attach cable
HPE Aruba - 1000Base direct attach cable
  • QSFP28 to QSFP28
  • for HPE Aruba 8325-32C, 8325-48Y8C; CX 10000 Empty Chassis, 8360-12C V2, 8360-16Y2C V2
PVGC €482.00 €444.00
HPE Aruba - 50GBase direct attach cable
HPE Aruba - 50GBase direct attach cable
  • SFP56 to SFP56
  • for HPE Aruba 6300, 6405, 6405 48, 6405 96, 6410; CX 8360
PVGC €383.00 €353.00
Informations générales
CategoryNetwork switches
DescriptionHPE Aruba 6300F - Switch - L3 - managed - 48 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56 - front to back airflow - rack-mountable - PoE+ - TAA Compliant
ManufacturerHewlett Packard Enterprise
MSRP€15,254.00
UNSPSC43222612
Descriptif principal
Dimensions & Weight / Depth32.7 cm
Dimensions & Weight / Height4.39 cm
Dimensions & Weight / Weight5.1 kg
Dimensions & Weight / Width44.2 cm
Header / BrandAruba
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth32.7 cm
Height4.39 cm
Weight5.1 kg
Width44.2 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 95% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 48 x 1000Base-T RJ-45 PoE+ - 30 W
  • 4 x 50Gbit LAN SFP56
  • 1 x console (USB) Type C
  • 1 x USB Type A
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+
Capacity
  • Switched virtual interfaces (SVIs): 1000
  • IPv4 host table capacity: 32000
  • IPv6 host table capacity: 32000
  • IPv4 routes (Unicast): 64000
  • IPv6 routes (Unicast): 32000
  • IPv4 routes (Multicast): 8000
  • IPv6 routes (Multicast): 8000
  • IGMP groups: 8000
  • MLD groups: 4000
  • IPv4 ACL entries (ingress): 5000
  • IPv6 ACL entries (ingress): 1250
  • MAC ACL entries (ingress): 5000
  • IPv4 ACL entries (egress): 2000
  • IPv6 ACL entries (egress): 500
  • MAC ACL entries (egress): 2000
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3at, IEEE 802.3ba, IEEE 802.1AX, ITU-T G.8032, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.3cc, ITU-T Y.1344, IEEE 802.3cd
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeFront to back airflow rack-mountable 1U
Encryption AlgorithmSSL, FIPS 140-2
FeaturesDHCP support, BOOTP support, ARP support, VLAN support, Syslog support, port mirroring, DiffServ support, IPv6 support, sFlow, VRRP support, MSTP support, QoS, MLD snooping, TPM, UDLD, DWRR, LLDP support, fan tray, SNMP trap, MIB, VRF, MVRP, NDP, CoS, SP, tagged VLAN, 8MB packet buffer, 802.1x authentication, ToS, BPDU, ICMP IRDP, VXLAN, Link Aggregation, EVPN, NTP, LLDP-MED, DoS protection, Rapid Reconfiguration of Spanning Tree (RSTP), CDP, BSR Mechanism
Flash Memory32 GB
Jumbo Frame Support9198 bytes
MAC Address Table Size32000 entries
Performance
  • Switching capacity: 496 Gbps
  • Switching throughput: 369 Mpps
  • 1 Gbps average latency (64-byte packets): 2.28 µs
  • 10 Gbps average latency (64-byte packets): 1.46 µs
  • 25 Gbps average latency (64-byte packets): 1.9 µs
  • 50 Gbps average latency (64-byte packets): 3.49 µs
  • Stacking bandwidth: 200 Gbps
Ports48 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56
Power Over Ethernet (PoE)PoE+
Processor1 x ARM Cortex-A72: 1.8 GHz
RAM8 GB DDR4 SDRAM
Remote Management ProtocolSNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, XRMON, SFTP
Routing ProtocolOSPF, BGP-4, BGP, IGMP, OSPFv2, PIM-DM, IGMPv3, MSDP, MLDv2, MLD, CIDR
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsCISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, WEEE, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55024:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, CISPR 35, EN 55024:2010 Class A, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 55035:2017
TAA CompliantYes
Power
Installed Qty1
Power DeviceInternal power supply
Power Provided900 Watt
Voltage RequiredAC 120/230 V (50 - 60 Hz)
