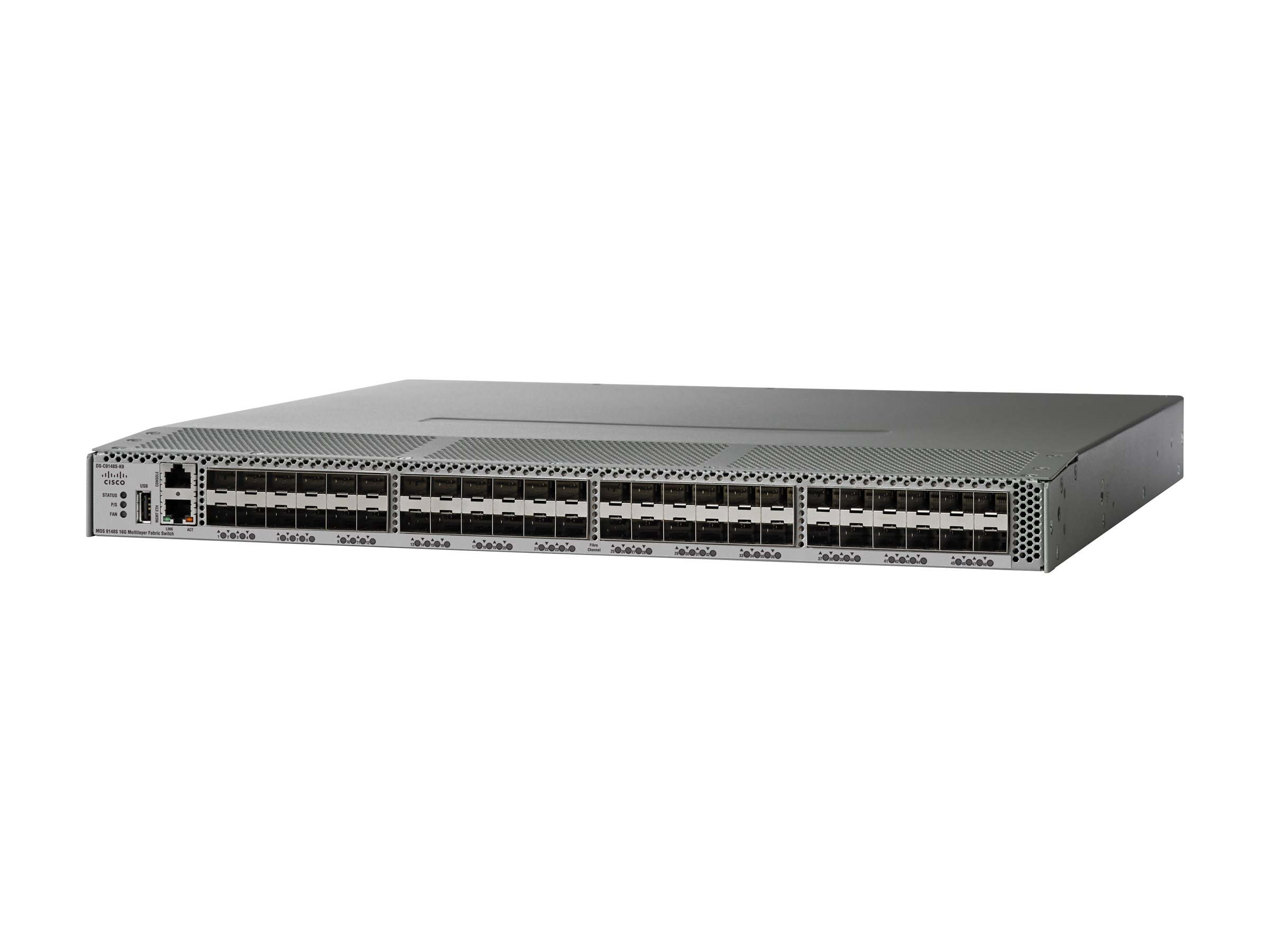

HPE StoreFabric SN6010C
Stock: 0
Réf. fabricant:
Copié dans le presse-papier
Cliquez pour copier
Réf. SHI:
Copié dans le presse-papier
Cliquez pour copier
|
Détails rapides
|
|---|
|
HPE StoreFabric SN6010C
- Switch
- managed
- 12 x 16Gb Fibre Channel SFP+
- rack-mountable
- with 12x 16 Gbps SFP+ transceiver, HPE Jumper Cord 2.4m (IEC320 C13/C14, M/F CEE 22)
| Détails supplémentaires | |
|---|---|
| Prix: | |
| Réf. fabricant: | R0Q97A#05Y |
| Réf. SHI: | 38275573 |
| Catégorie: | Hubs or concentrators |
| UNSPSC: | 43222610 |
| Fabricant: | Hewlett Packard Enterprise |
| Type de produit: | Hardware |
| Informations générales | |
|---|---|
| Category | Hubs or concentrators |
| Description | HPE StoreFabric SN6010C - Switch - managed - 12 x 16Gb Fibre Channel SFP+ - rack-mountable - with 12x 16 Gbps SFP+ transceiver, HPE Jumper Cord 2.4m (IEC320 C13/C14, M/F CEE 22) |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | €12,459.00 |
| UNSPSC | 43222610 |
| Descriptif principal | |
| Dimensions & Weight / Depth | 41.5 cm |
| Dimensions & Weight / Height | 4.37 cm |
| Dimensions & Weight / Weight | 9 kg |
| Dimensions & Weight / Width | 43.59 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 12 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| System Requirements / OS Required | Cisco MDS 9000 NX-OS 6.2(9) or later |
| Dimensions & Weight | |
| Depth | 41.5 cm |
| Height | 4.37 cm |
| Weight | 9 kg |
| Width | 43.59 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Device Type | Switch - 12 ports - managed - with 12x 16 Gbps SFP+ transceiver, HPE Jumper Cord 2.4m (IEC320 C13/C14, M/F CEE 22) |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | AES |
| Features | Trunking, Syslog support, LUN zoning, QoS, redundant hot swappable fans, MAC and IP-based ACLs support |
| Fibre Channel | FC-AL, FC-AL-2, FC-BB, FC-DA, FC-FLA, FC-FS, FC-GS, FC-GS-3, FC-GS-4, FC-IP, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5 |
| Performance | Aggregate bandwidth: 192 Gbps |
| Ports | 12 x 16Gb Fibre Channel SFP+ |
| Remote Management Protocol | SNMP, SNMP 3, SMI-S, SSH-2, CLI |
| Subtype | Fibre Channel |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year - on-site - response time: next business day |
| Miscellaneous | |
| Compliant Standards | ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, AS/NZS 60950, IEC 60825, VCCI Class A, KN24, AS/NZS CISPR 22, ETSI 300 019, EN 55022 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Included Accessories | 12 x 16Gb Fibre Channel SFP+ Short Wave Transceiver |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 101 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 300 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Cisco MDS 9000 NX-OS 6.2(9) or later |
| Software Included | Cisco Data Center Network Manager |
