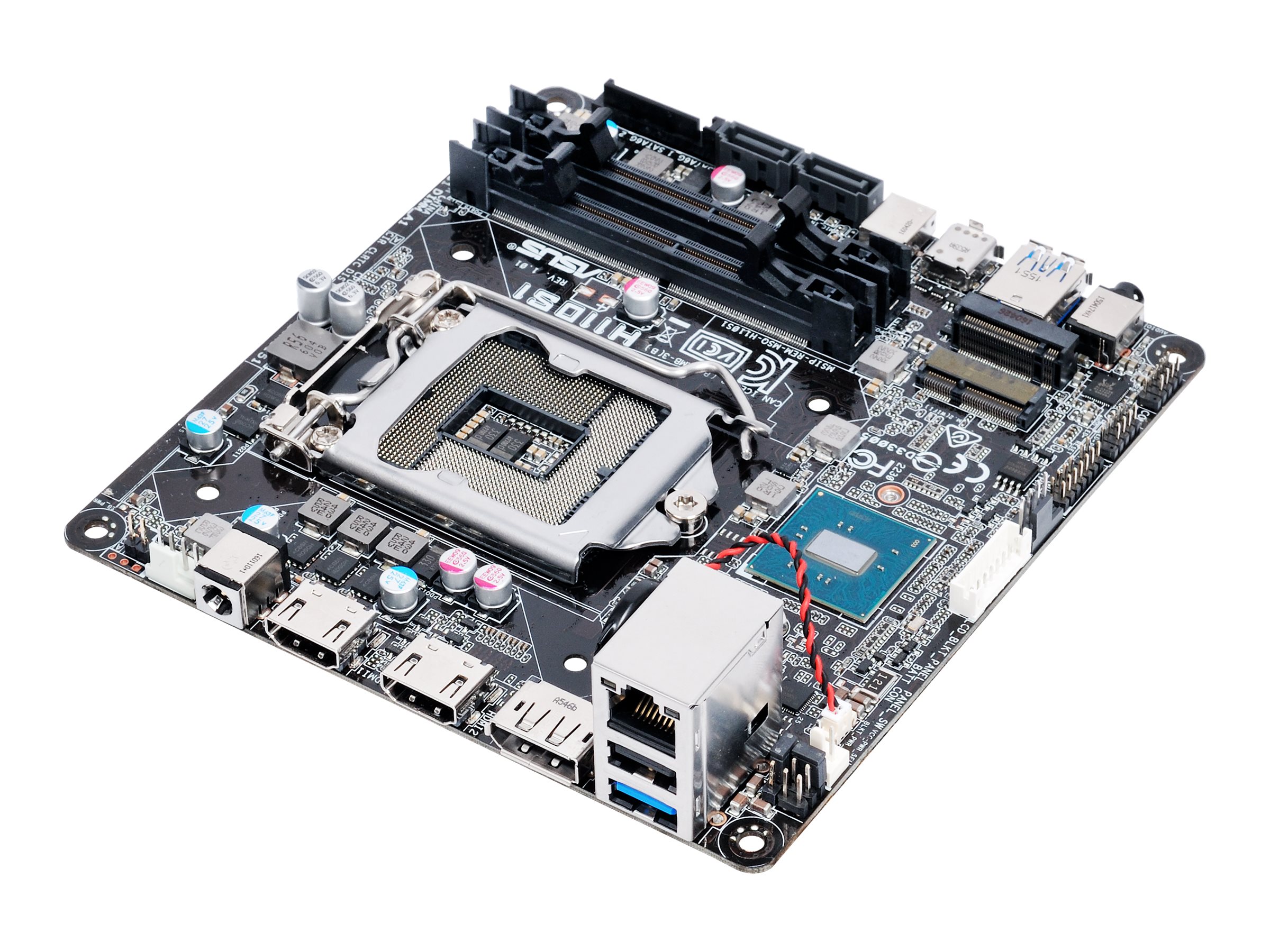

ASUS H110S1/CSM - Motherboard
Stock: n/a
Réf. fabricant:
Copié dans le presse-papier
Cliquez pour copier
Réf. SHI:
Copié dans le presse-papier
Cliquez pour copier
|
Détails rapides
|
|---|
|
ASUS H110S1/CSM - Motherboard
- mini STX
- LGA1151 Socket
- H110
- USB 3.0, USB-C
- Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (4-channel)
| Détails supplémentaires | |
|---|---|
| Réf. fabricant: | H110S1/CSM |
| Réf. SHI: | 32539240 |
| Catégorie: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Fabricant: | ASUS |
| Type de produit: | Hardware |
| Informations générales | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS H110S1/CSM - Motherboard - mini STX - LGA1151 Socket - H110 - USB 3.0, USB-C - Gigabit LAN - onboard graphics (CPU required) - HD Audio (4-channel) |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Descriptif principal | |
| Dimensions & Weight / Depth | 14 cm |
| Dimensions & Weight / Width | 14.7 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel H110 Express |
| Mainboard / Compatible Processors |
|
| Mainboard / Processor Socket | LGA1151 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC3236 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (4-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | DC-in power connector |
| Storage Interfaces | SATA-600 / PCIe 3.0 -connectors: 2 x 7pin SATA, 1 x M.2 |
| Features | |
| BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS EZ DIY, CrashFree BIOS 3, audio jack detect technology, Intel Extreme Memory Profile (XMP) support, ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Conductive Polymer Capacitors, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection II, Intel Small Business Basics support |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | Intel H110 Express |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1151 Socket |
| Product Type | Motherboard - mini STX |
| Graphics | |
| Max Allocated RAM Size | 1024 MB |
| LAN | |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | Plug and Play, ACPI 5.0 |
| Depth | 14 cm |

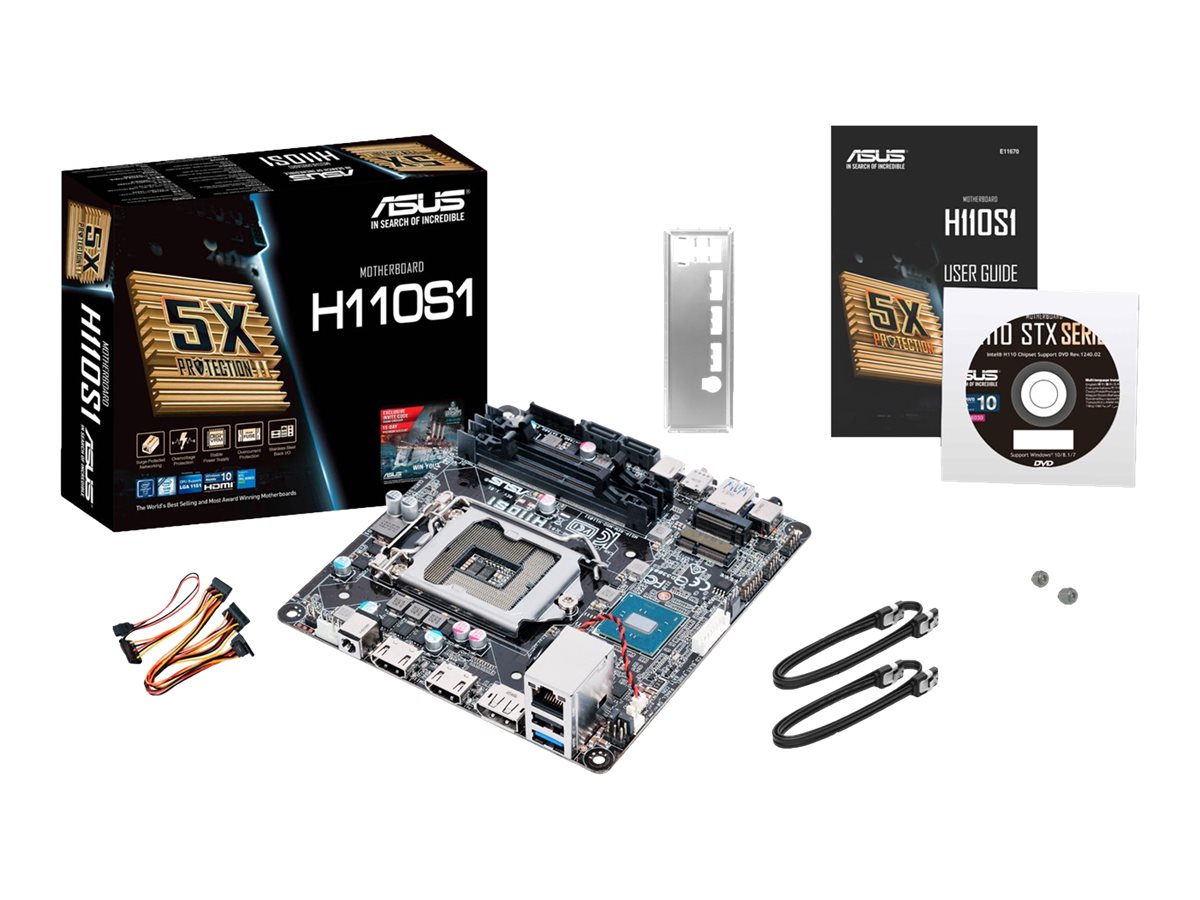

| Included Accessories | I/O back plate, 2 x M.2 screws |
| Software Included | Drivers & utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), Media Streamer, ASUS EZ Flash 3 |
| Width | 14.7 cm |
| Supported RAM | |
| Bus Clock | 2133 MHz |
| Features | Intel Extreme Memory Profiles (XMP) |
| Max Size | 32 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
