Hardware Computer Components Motherboards
Ajouter à mes favoris
Motherboards

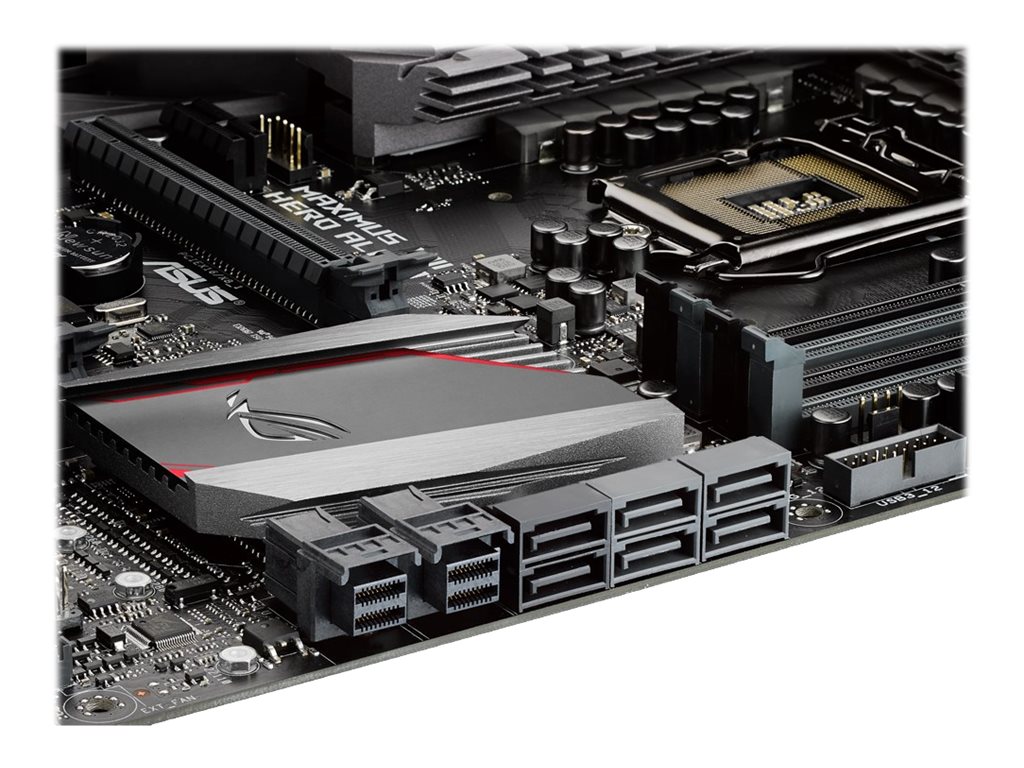

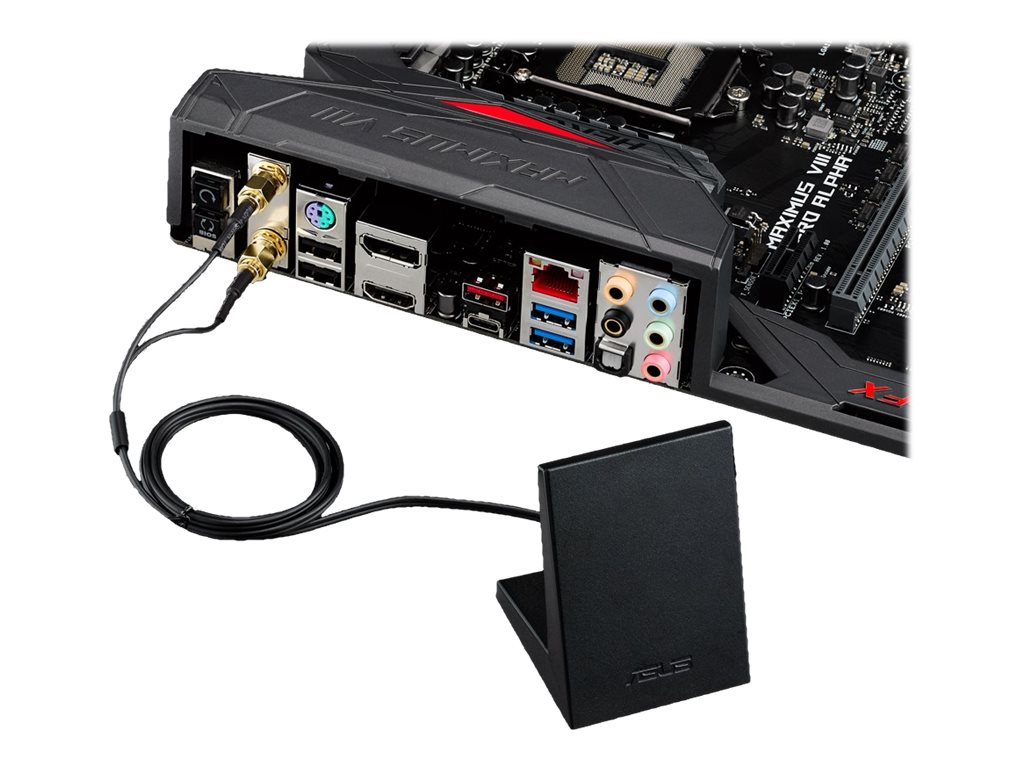

ASUS ROG MAXIMUS VIII HERO ALPHA

Connectez-vous pour connaître le prix
Stock: n/a
ASUS ROG MAXIMUS VIII HERO ALPHA
Réf. fabricant:
Copié dans le presse-papier
 Cliquez pour copier
Réf. SHI:
Copié dans le presse-papier
 Cliquez pour copier
Détails rapides
  • Motherboard
  • ATX
  • LGA1151 Socket
  • Z170 Chipset
  • USB 3.0, USB 3.1, USB-C
ASUS ROG MAXIMUS VIII HERO ALPHA
  • Motherboard
  • ATX
  • LGA1151 Socket
  • Z170 Chipset
  • USB 3.0, USB 3.1, USB-C
  • Bluetooth, Gigabit LAN, Wi-Fi
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Détails supplémentaires
Réf. fabricant: ROG MAXIMUS VIII HERO ALPHA
Réf. SHI: 31559974
Catégorie: motherboards or daughterboards
UNSPSC: 43201513
Fabricant: ASUS
Type de produit: Hardware
Informations générales
Categorymotherboards or daughterboards
DescriptionASUS ROG MAXIMUS VIII HERO ALPHA - Motherboard - ATX - LGA1151 Socket - Z170 Chipset - USB 3.0, USB 3.1, USB-C - Bluetooth, Gigabit LAN, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
UNSPSC43201513
Descriptif principal
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel Z170
Mainboard / Compatible Processors
  • Celeron
  • Core i3
  • Core i5
  • Core i7
  • Pentium
Mainboard / Processor SocketLGA1151 Socket
Networking / Data Link Protocol
  • Bluetooth 4.1
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecSupremeFX 2015
Compliant StandardsDTS Connect, High Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode)
  • 1 x PCIe 3.0 x16 (x4 mode)
  • 3 x PCIe 3.0 x1
Interfaces
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x LAN (Gigabit Ethernet)
  • 1 x USB 3.1
  • 1 x USB-C
  • 2 x USB 3.0
  • 2 x USB 2.0
  • 1 x PS/2 keyboard / mouse
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x TOSLINK
Internal Interfaces
  • 4 x USB 2.0 - header
  • 4 x USB 3.0 - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
RAID FeaturesIntel Rapid Storage Technology
Storage Interfaces
  • SATA-600 / PCIe 3.0 -connectors: 4 x 7pin Serial ATA, 1 x M.2, 2 x U.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices
Features
BIOS FeaturesWfM 2.0 support, Multilingual BIOS, ASUS O.C. Profile, USB BIOS Flashback, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support
BIOS TypeAMI
Hardware FeaturesJack retasking, MemOK!, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, NVIDIA Quad SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), GPU.DIMM Post, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Intel Smart Response Technology, Q-Code, SupremeFX Shielding technology, AMD 3-way CrossFireX technology support, Onboard Button, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Disk Unlocker, ASUS SSD Secure Erase, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS Button, NexFET, ASUS Fan Xpert 3, Dual Intelligent Processors 5, GameFirst III, LANGuard, Sonic Radar II, Sonic SenseAmp, USB 3.1 Boost, ASUS PRO Clock Technology, Sonic Studio II, KeyBot II, Lighting Control, GameFirst IV
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeIntel Z170
Compatible ProcessorsPentium, Celeron, Core i5, Core i3, Core i7
Max Processors Qty1
Processor SocketLGA1151 Socket
Product TypeMotherboard - ATX
Graphics
Max Allocated RAM Size512 MB
LAN
Network InterfacesBluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
Miscellaneous
Cables Included
  • 6 x Serial ATA cable
  • 1 x SLI bridge
Compliant StandardsPlug and Play
Depth24.4 cm
Included AccessoriesROG Door Hanger, cable labels, ASUS 2T2R Wi-Fi moving antennas, 1 x M.2 screw, I/O back cover, ROG fan stickers
Software IncludedDrivers & utilities, Kaspersky Anti-Virus, ASUS AI Charger, ROG CPU-Z, ROG GameFirst Utility, ROG Mem TweakIt Utility, DAEMON Tools Pro Standard, ASUS WebStorage, ASUS AI Suite III, ROG RAMDisk, ASUS Turbo App, Mobo Connect, PC Cleaner, Media Streamer, HyStream, ASUS RAMCache, Overwolf, ROG Aura
Width30.5 cm
Supported RAM
Bus Clock2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.)
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size64 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR4
