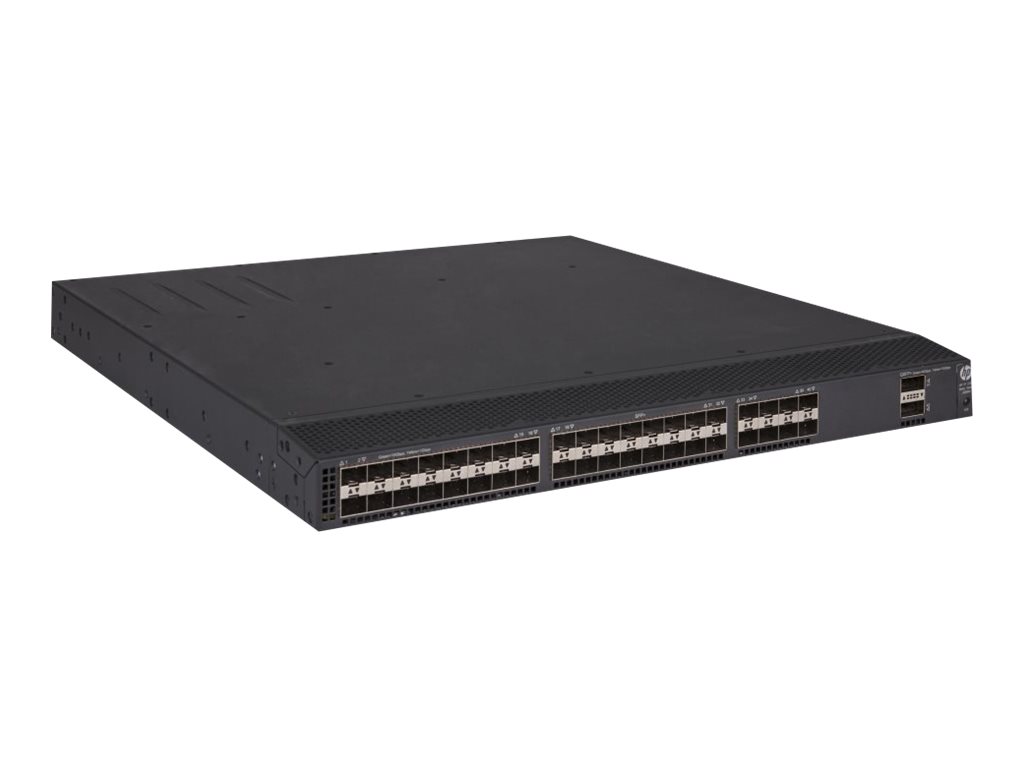

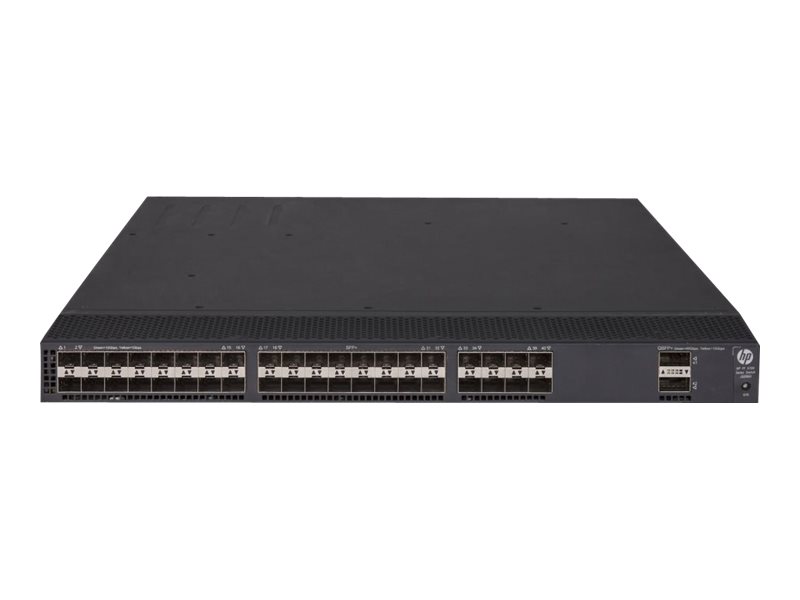

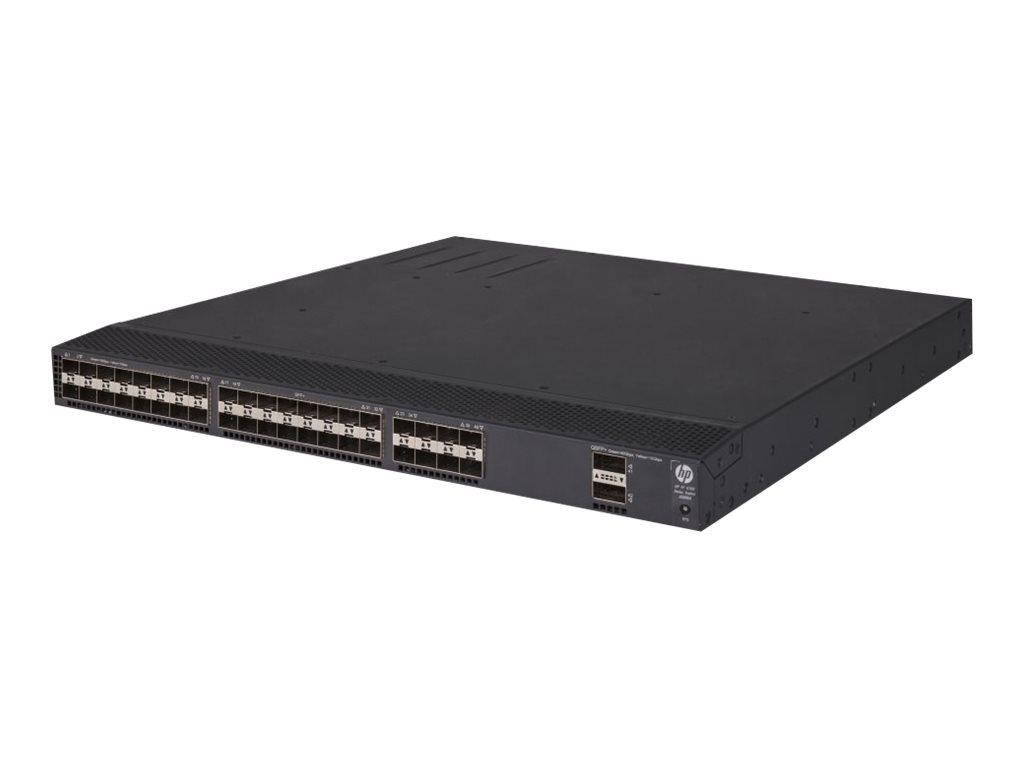

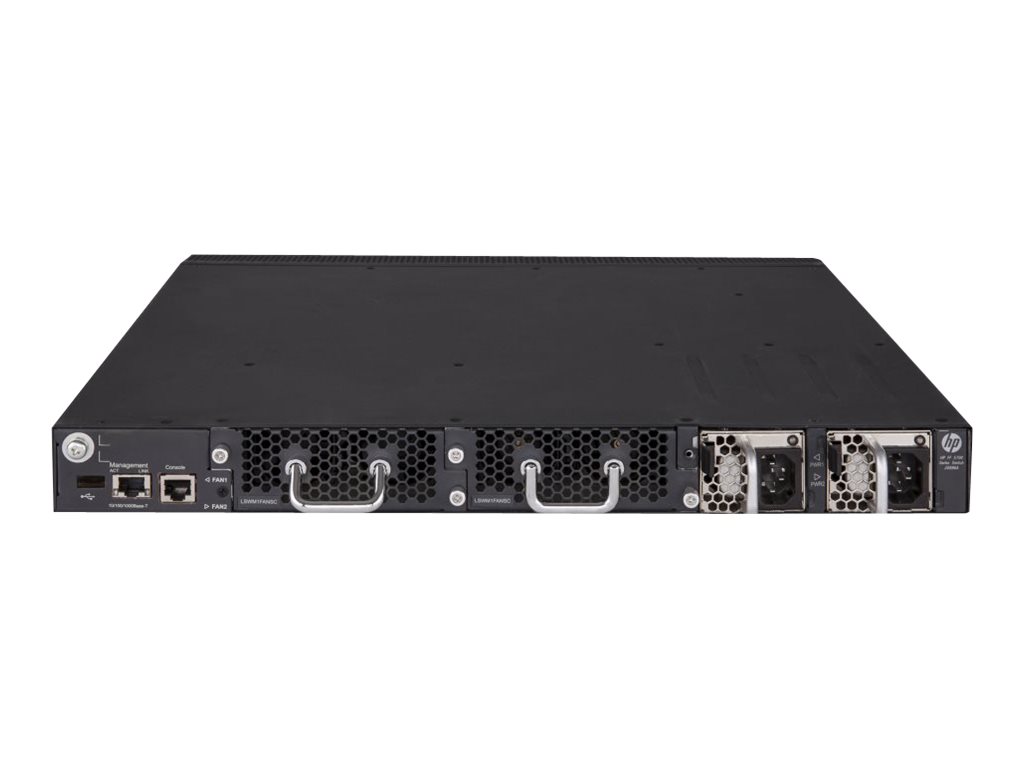

HPE FlexFabric 5700-40XG-2QSFP+
PVGC€12,648.00
Stock: 0
Réf. fabricant:
Copié dans le presse-papier
Cliquez pour copier
Réf. SHI:
Copié dans le presse-papier
Cliquez pour copier
|
Détails rapides
|
|---|
|
HPE FlexFabric 5700-40XG-2QSFP+
- Switch
- L3
- managed
- 40 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ (uplink)
- rack-mountable
| Détails supplémentaires | |
|---|---|
| Prix: | |
| PVGC: | €12,648.00 |
| Réf. fabricant: | JG896A |
| Réf. SHI: | 29204416 |
| Catégorie: | Network switches |
| UNSPSC: | 43222612 |
| Fabricant: | Hewlett Packard Enterprise |
| Type de produit: | Hardware |
Networking and Security
- 40 Gigabit LAN
- 40GBASE-SR4
- MPO multi-mode
- up to 100 m
- 850 nm
- for HPE Aruba 2930M 24 Smart Rate POE+ 1-Slot, 8325-32C, 8325-48Y8C
PVGC €3,578.00
€3,051.00
- 10GbE
- 10GBase-SR
- LC
- for FlexFabric 12902; Networking Comware 2150 16, 2150 24, 2150 48, 2150 8p, 5150L 24
PVGC €787.00
€302.00
- 1GbE
- 1000Base-LX
- LC
- for Networking Comware 2050 20, 2050 24, 2050 48, 2150 16, 2150 24, 2150 48, 2150 8p, 5150L 24
PVGC €973.00
€375.00
| Informations générales | |
|---|---|
| Category | Network switches |
| Description | HPE FlexFabric 5700-40XG-2QSFP+ - Switch - L3 - managed - 40 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ (uplink) - rack-mountable |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | €12,648.00 |
| UNSPSC | 43222612 |
| Descriptif principal | |
| Dimensions & Weight / Depth | 46 cm |
| Dimensions & Weight / Height | 4.37 cm |
| Dimensions & Weight / Width | 43.99 cm |
| Header / Brand | HPE |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 40 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| System Requirements / OS Required | Comware v7 |
| Dimensions & Weight | |
| Depth | 46 cm |
| Height | 4.37 cm |
| Width | 43.99 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.3ag |
| Device Type | Switch - 40 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Features | Flow control, DHCP support, ARP support, IGMP snooping, port mirroring, WRR queuing, SNTP support, WFQ, WRED, sFlow, PIM snooping, MSTP support, DCBX support, priority-based flow control, ACL support, QoS, Jumbo Frames support, MLD snooping, DLDP support, ECMP, LLDP support, DCB, MIB, NTP time synchronization, CoS, SP, IRF technology, FCoE support |
| Flash Memory | 512 MB |
| Jumbo Frame Support | Yes |
| MAC Address Table Size | 128K entries |
| Performance |
|
| Ports | 40 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ (uplink) |
| RAM | 2 GB SDRAM |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | GOST, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, EN 60825-1, ANSI C63.4, EN 60825-2, VCCI Class A, AS/NZS CISPR 22, EN 300 386 V1.3.3, CAN/CSA-C22.2 No. 60950-1 |
| Power | |
| Max Supported Qty | 2 |
| Power Consumption Operational | 162 Watt |
| Power Device | Internal power supply (not installed) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Software / System Requirements | |
| OS Required | Comware v7 |
