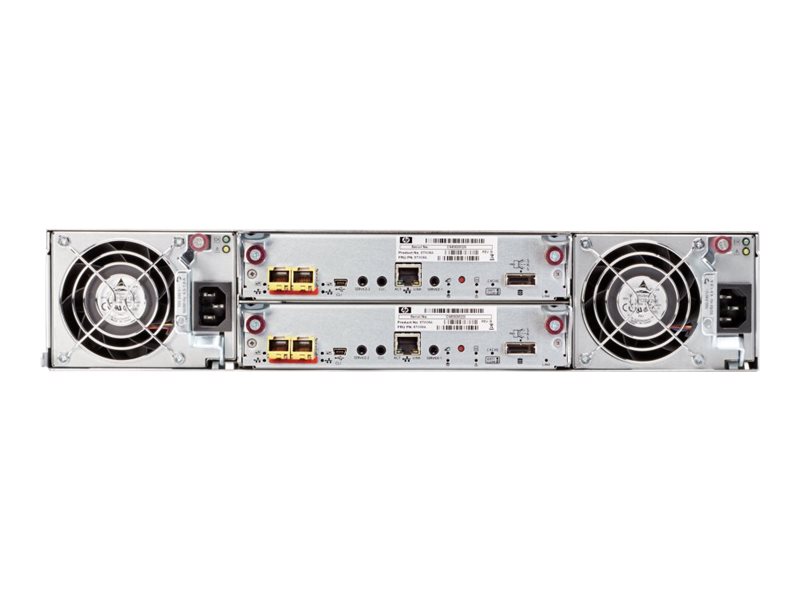

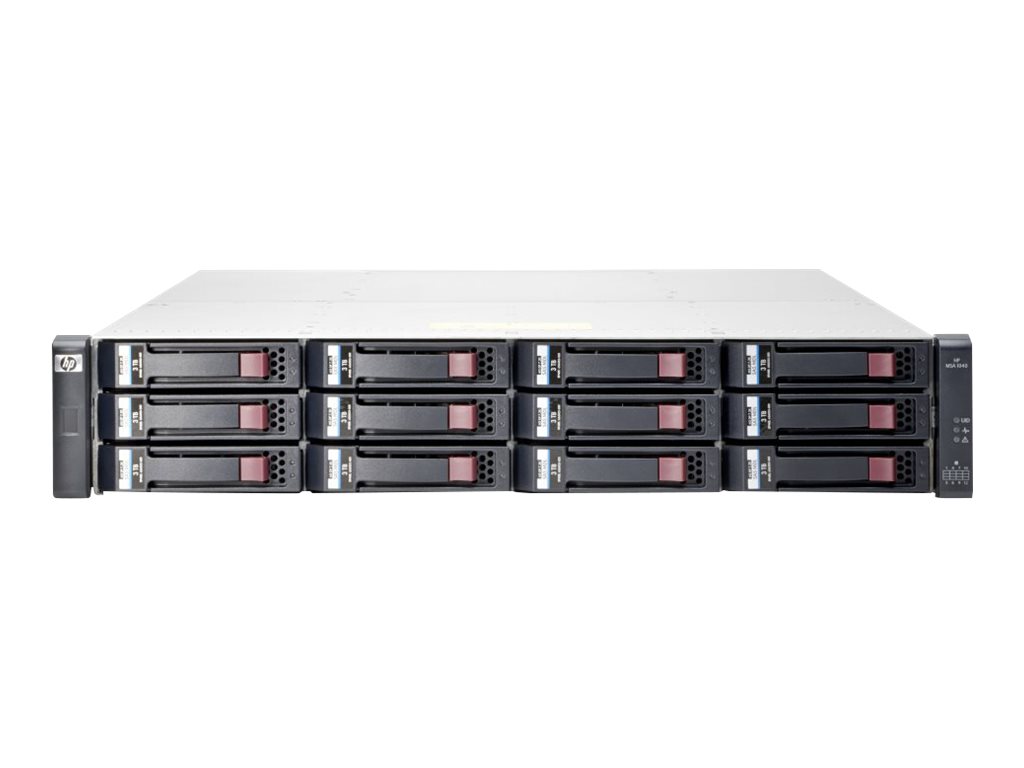

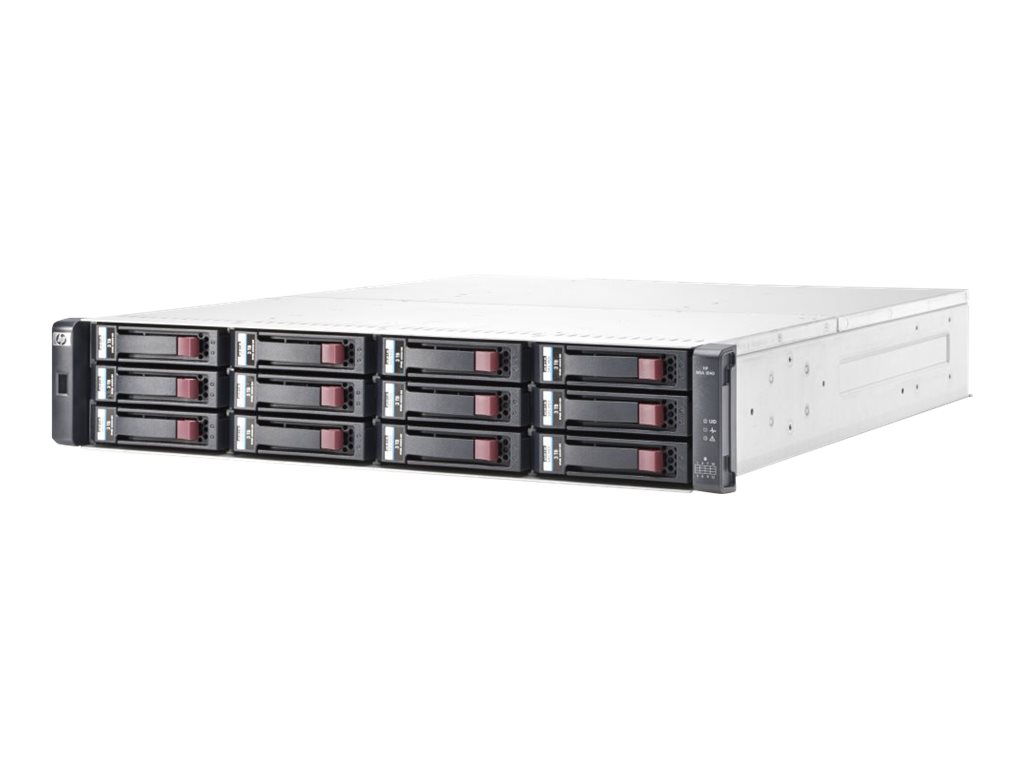

HPE Modular Smart Array 1040 Dual Controller LFF Storage
Stock: 0
Réf. fabricant:
Copié dans le presse-papier
Cliquez pour copier
Réf. SHI:
Copié dans le presse-papier
Cliquez pour copier
|
Détails rapides
|
|---|
|
HPE Modular Smart Array 1040 Dual Controller LFF Storage
- Hard drive array
- iSCSI (1 GbE) (external)
- rack-mountable
- 2U
| Détails supplémentaires | |
|---|---|
| Prix: | |
| Réf. fabricant: | E7W01A |
| Réf. SHI: | 28441212 |
| Catégorie: | Disk arrays |
| UNSPSC: | 43201802 |
| Fabricant: | Hewlett Packard Enterprise |
| Type de produit: | Hardware |
Network Cables
- Network cable
- SFP+ to SFP+
- 3 m
- for HPE 59XX, 75XX; FlexFabric 12902; Modular Smart Array 1040; SimpliVity 380 Gen10, 380 Gen9
PVGC €294.00
€163.00
- for Edgeline e920; Modular Smart Array 1040, 2040 10; ProLiant DL360p Gen8, e910t 2U; CX 8360
PVGC €267.00
€107.00
- 1 m
- fiber optic
- 50 / 125 micron
- OM3
- for HPE 3600, 8/24, 8/8, SN6000; StoreFabric SN6500, SN6610, SN6620C 24, SN6650
PVGC €66.00
€56.00
| Informations générales | |
|---|---|
| Category | Disk arrays |
| Description | HPE Modular Smart Array 1040 Dual Controller LFF Storage - Hard drive array - iSCSI (1 GbE) (external) - rack-mountable - 2U |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | €5,320.00 |
| UNSPSC | 43201802 |
| Descriptif principal | |
| Dimensions & Weight / Depth | 57.2 cm |
| Dimensions & Weight / Height | 8.9 cm |
| Dimensions & Weight / Width | 48.26 cm |
| Header / Brand | HPE |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface | iSCSI (1 GbE) |
| Storage / HDD Array External Interface Class | iSCSI |
| Storage / Rack-mountable | Rack-mountable |
| Storage / Type | Hard drive array |
| Dimensions & Weight | |
| Depth | 57.2 cm |
| Height | 8.9 cm |
| Width | 48.26 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 3.5" LFF |
| Interfaces |
|
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, EN55022 Class A, CCC, FCC Part 15, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, WEEE, RoHS, EN55024 Class A, VCCI Class A, KN24, KN22 Class A, China RoHS, CNS 13438 |
| Features | Firmware upgradable |
| Power | |
| Max Supported Qty | 2 |
| Power Consumption Operational | 337 watt |
| Power Device | 2 x internal power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Storage | |
| HDD Array External Interface | iSCSI (1 GbE) |
| Max Supported Capacity | 48 TB |
| Maximum LUNs | 512 |
| Storage Controller | |
| Cache / Buffer Size (Max) | 4 GB |
| Data Transfer Rate | 600 MBps |
| Installed Qty | 2 |
| Interface Type | SAS 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
| Type | RAID |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| System Requirements | |
| OS Required | Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2008 SP2, Microsoft Windows Server 2012 |
